Magic Me Step by Step Guide

Step 1: Open Xcode

Description: Launch Xcode from Applications or using Spotlight Search to begin creating your SwiftUI project.

Instruction: Press Command + Space to open Spotlight Search, type "Xcode", and click on Xcode to launch the application. Alternatively, find Xcode in your Applications folder.

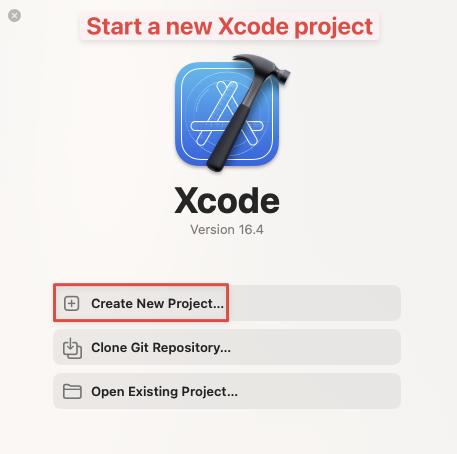

Step 2: Create a New Project

Description: Start a new Xcode project from the welcome screen to begin your SwiftUI development.

Instruction: From the Xcode welcome screen, click "Create a new Xcode project". If Xcode is already open, you can also use File > New > Project from the menu bar.

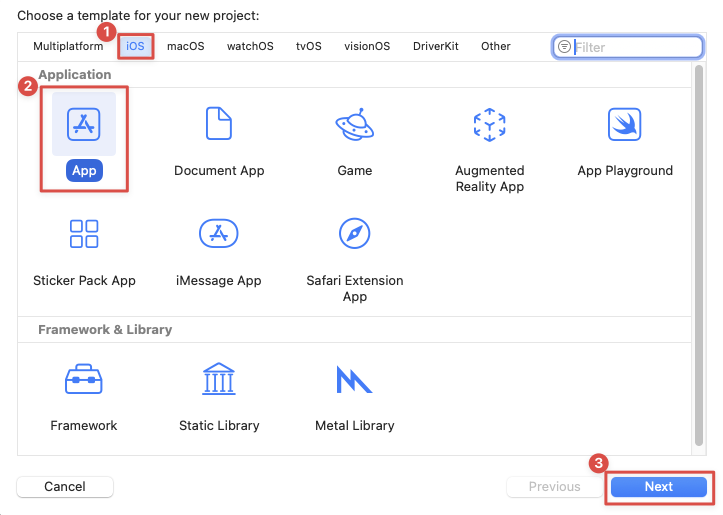

Step 3: Choose iOS App Template

Description: Select the appropriate template for iOS SwiftUI app development.

Instruction: In the template selection screen, make sure the "iOS" tab is selected at the top, then choose the "App" template from the Application section. Click "Next" to continue.

Step 4: Configure Project Settings

Description: Set up your project details and ensure SwiftUI is selected as the interface framework.

Instruction: Fill in the project configuration:

• Product Name: Enter your app name (e.g., "MyFirstApp")
• Team: Select your development team (if available)
• Organization Identifier: Use reverse domain notation (e.g., com.yourname.myfirstapp)
• Bundle Identifier: Auto-generated based on organization identifier and product name
• Language: Swift
• Interface: SwiftUI (Important! Make sure this is selected)
• Use Core Data: Leave unchecked for beginners
• Include Tests: Can be unchecked for simple projects

Click "Next" when all settings are configured.

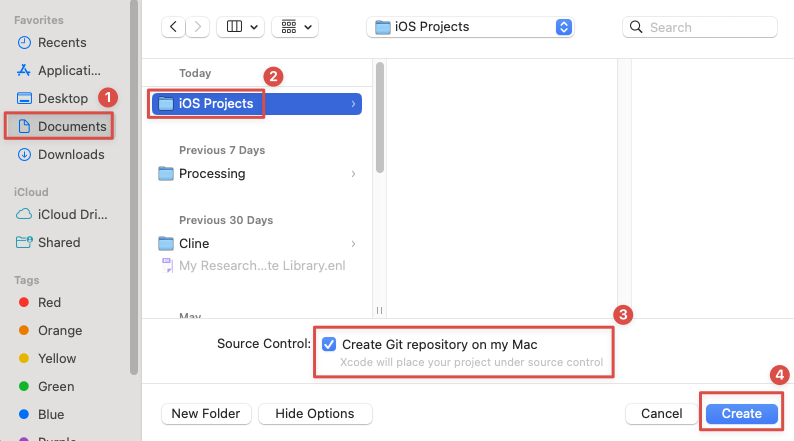

Step 5: Choose Project Location

Description: Select where to save your project on your Mac and set up version control.

Instruction: Choose a location to save your project (Desktop or Documents folder recommended). Ensure "Create Git repository on my Mac" is checked for version control. Click "Create" to finish setting up your project.

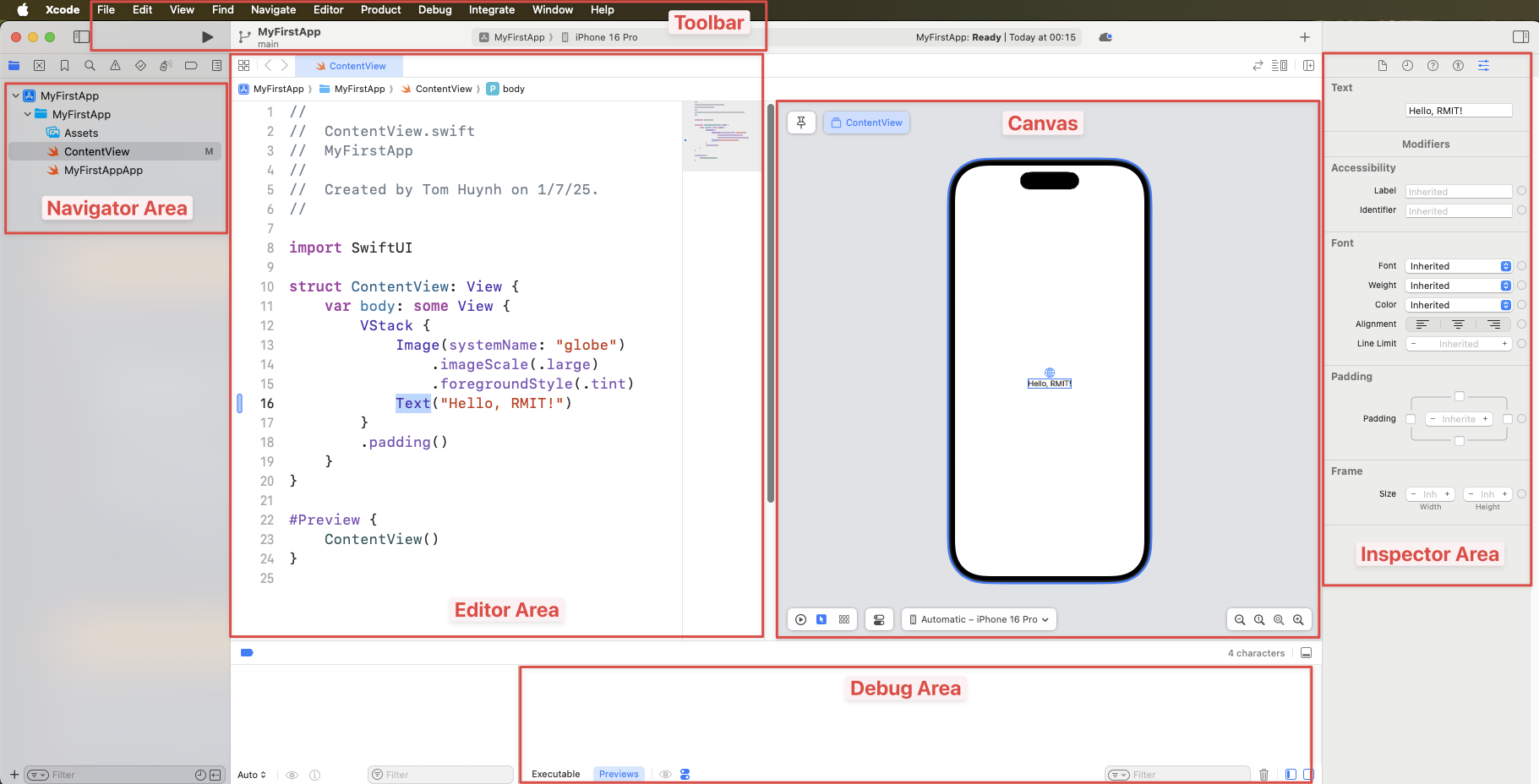

Step 6: Understand the Xcode Interface

Description: Familiarize yourself with the Xcode workspace layout for SwiftUI development.

Instruction: The Xcode interface consists of several key areas:

• Navigator Area (Left): Browse project files, folders, and resources
• Editor Area (Center): Write and edit your SwiftUI code
• Canvas (Right): Live preview of your SwiftUI interface
• Inspector Area (Far Right): View and modify properties and settings
• Debug Area (Bottom): Console output and debugging tools
• Toolbar (Top): Build, run, and stop controls

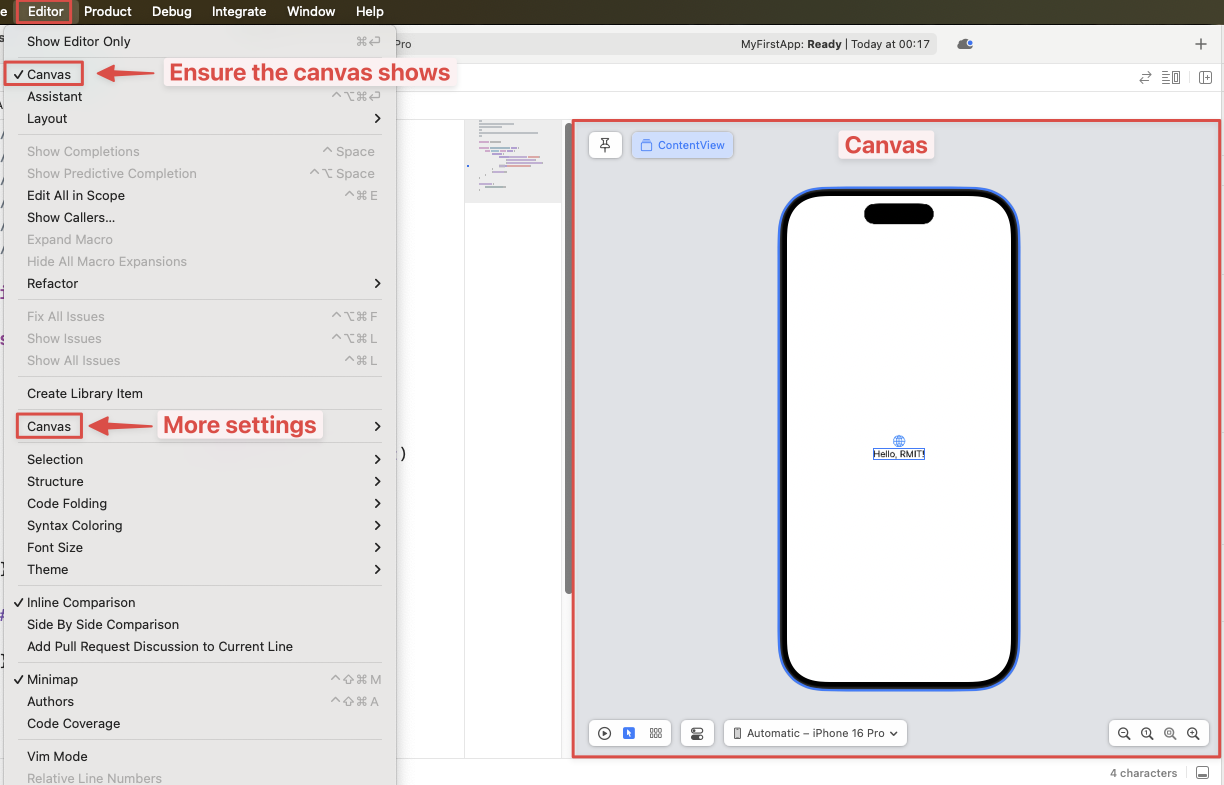

Step 7: Enable Canvas Preview

Description: Activate the live preview feature to see your SwiftUI code changes in real-time.

Instruction: In the Canvas area (right side), click the "Resume" button to start the live preview. If the Canvas is not visible, go to Editor > Canvas in the menu bar to show it. The preview will update automatically as you modify your SwiftUI code.

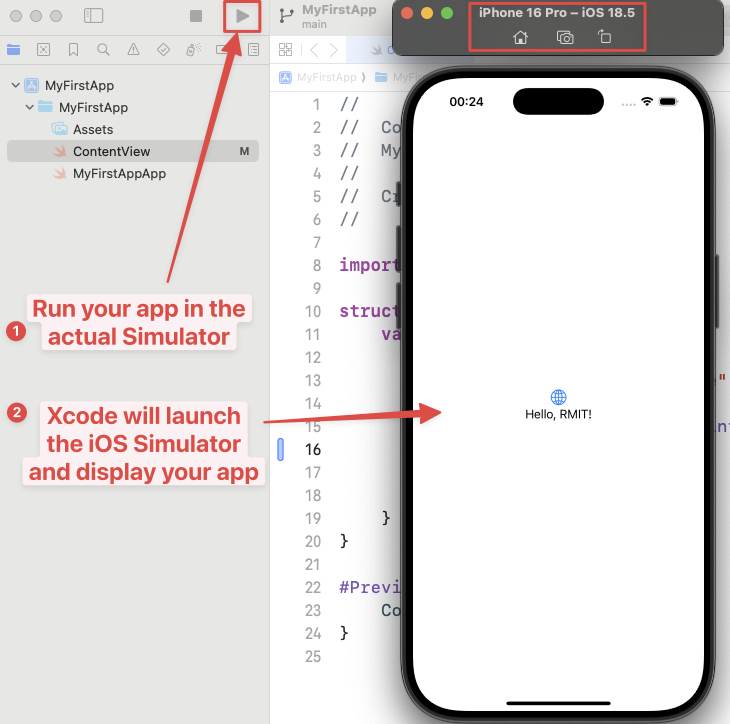

Step 8: Run Your First App

Description: Build and run your default SwiftUI app in the iOS Simulator to see it in action.

Instruction: Click the Play button (▶️) in the toolbar or press Command + R to build and run your app. Xcode will launch the iOS Simulator and display your app. The default app shows "Hello, world!" text - this confirms your SwiftUI project is working correctly.

Step 1: Prepare Your High-Resolution Image

Description: Start with the highest resolution version of your image. A larger image can be scaled down without losing quality, so it's best to start with an image that is at least 3x the final display size.

Instruction: Create or obtain a high-quality image. For example, if you want your image to be 100x100 points on the screen, your source image should be at least 300x300 pixels.

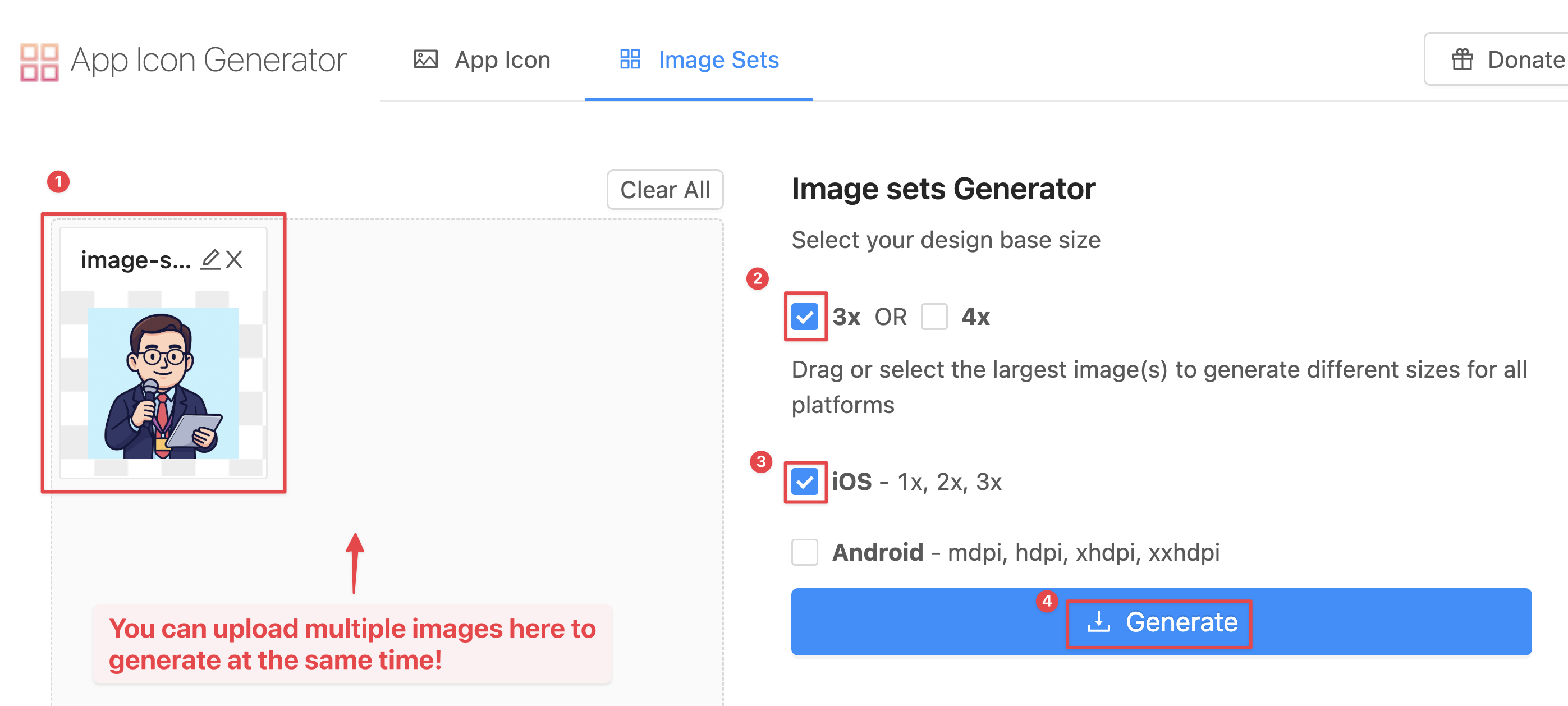

Step 2: Generate Image Set with an Online Tool

Description: Use a tool to automatically generate the 1x, 2x, and 3x versions of your image. This saves time and ensures the images are correctly sized.

Instruction: Go to appicon.co and scroll down to the "Image Sets" section. Drag your high-resolution image into the drop zone. The tool will generate a zip file containing the 1x, 2x, and 3x images. Download and unzip the file.

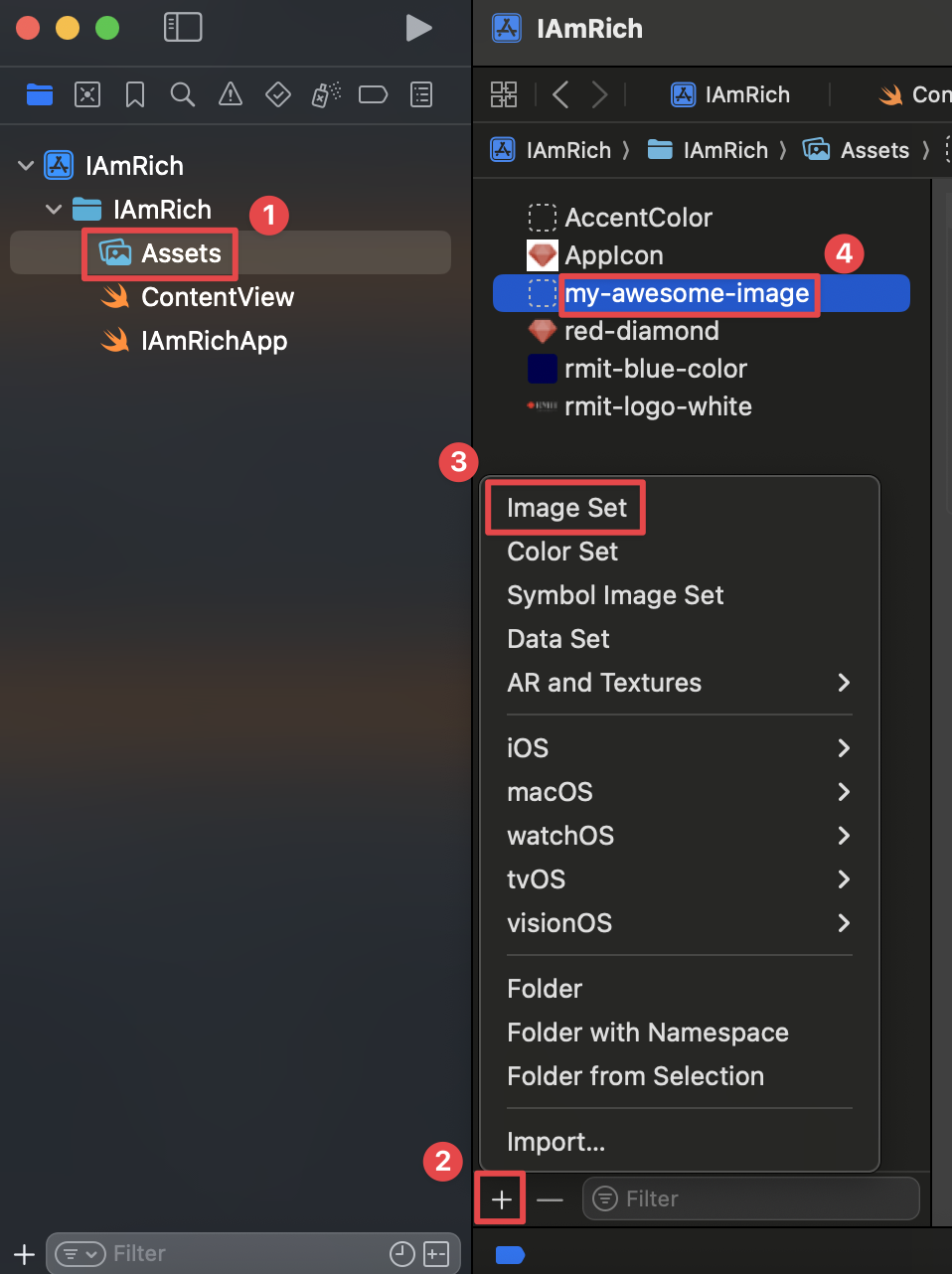

Step 3: Add a New Image Set in Xcode

Description: Create a new image set in your project's Asset Catalog to hold the different scale factors of your image.

Instruction: In Xcode, open your Assets.xcassets file. Click the "+" button at the bottom and select "Image Set". Give the new image set a descriptive name (e.g., "my-awesome-image").

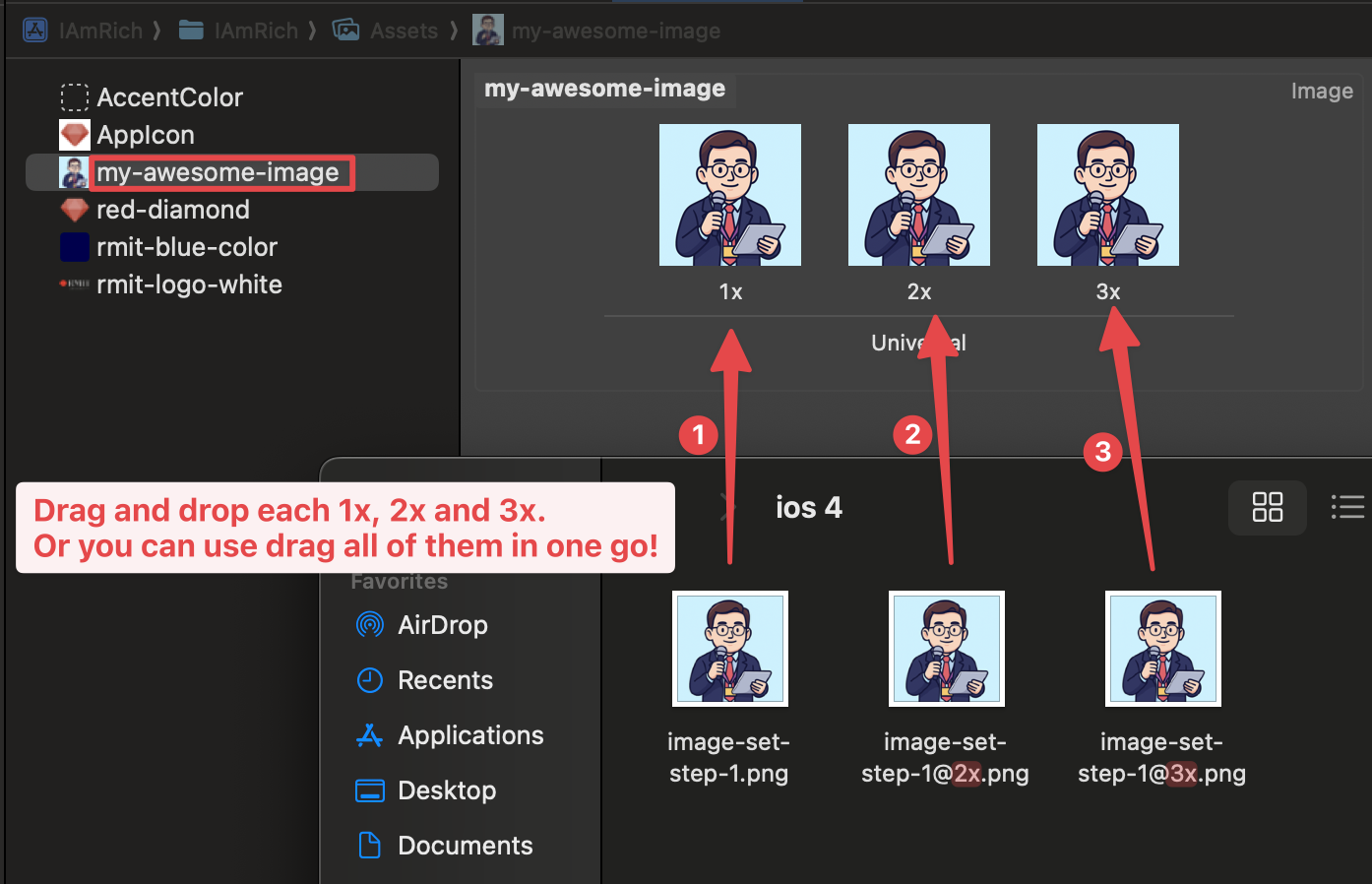

Step 4: Drag and Drop Generated Images

Description: Add the generated 1x, 2x, and 3x images to the corresponding slots in the image set.

Instruction: Drag the image.png (1x), image@2x.png (2x), and image@3x.png (3x) files from the unzipped folder into the respective 1x, 2x, and 3x placeholders in the Xcode image set.

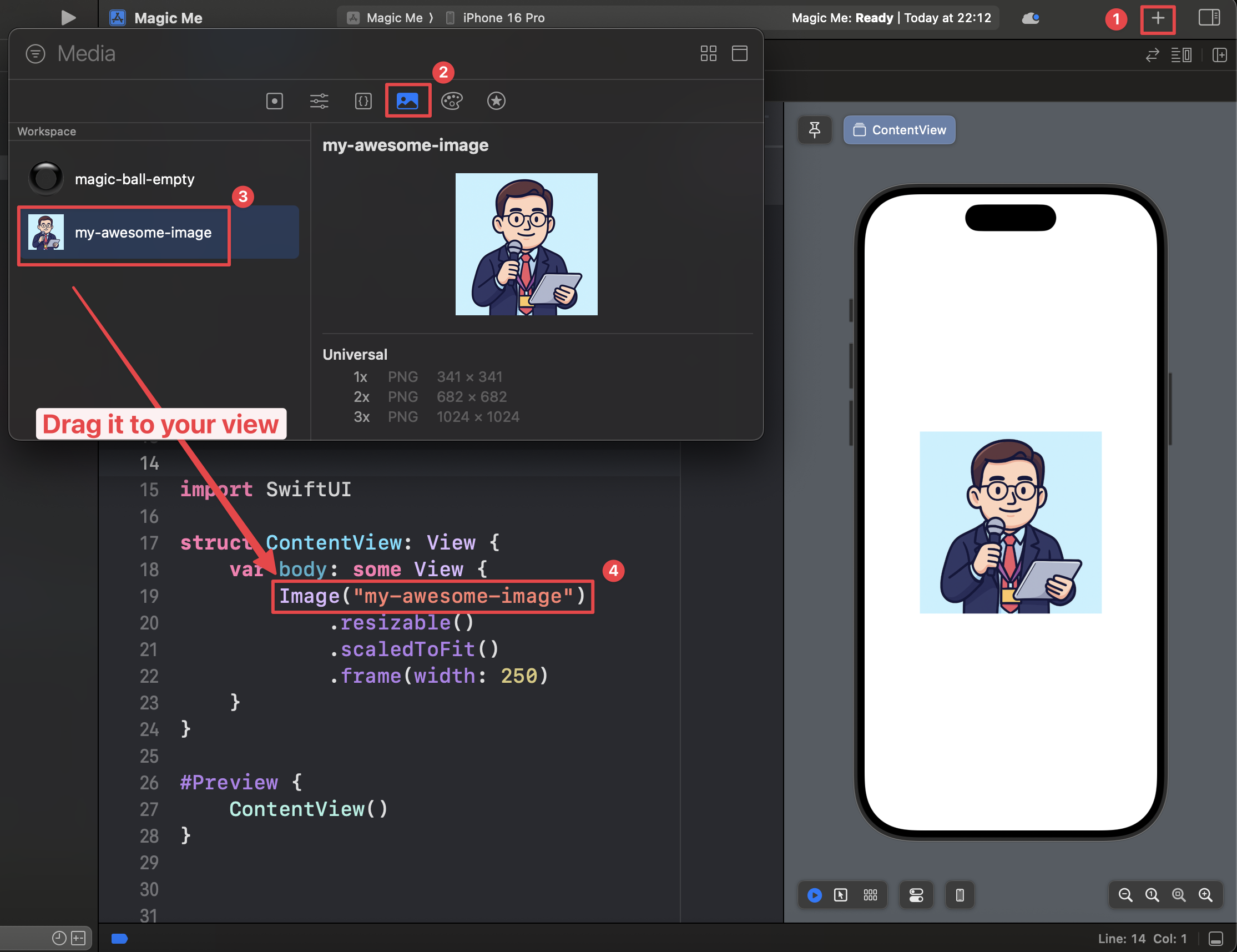

Step 5: Use the Image in SwiftUI

Description: Use the image in your SwiftUI code by referencing the name of the image set. SwiftUI will automatically select the correct image based on the device's screen resolution.

Instruction: In your SwiftUI view, use Image("my-awesome-image") to display the image. You don't need to specify the scale factor; the system handles it for you.

struct ContentView: View {
    var body: some View {
        Image("my-awesome-image")
            .resizable()
            .scaledToFit()
            .frame(width: 100)
    }
}

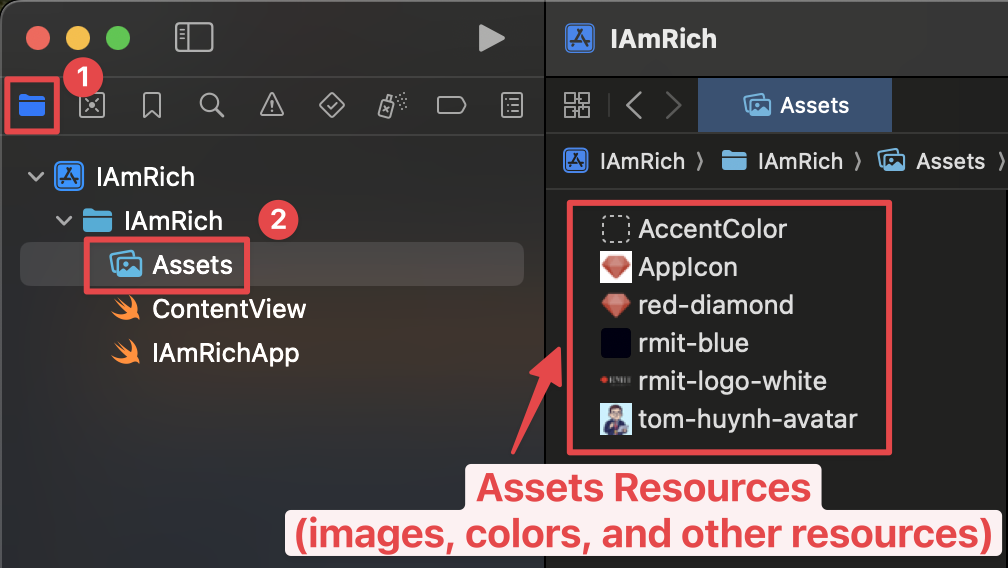

Step 1: Open the Asset Catalog

Description: Navigate to the Asset Catalog (Assets.xcassets) where you manage all your project's images, colors, and other resources.

Instruction: In the Project Navigator on the left side of Xcode, click on the Assets.xcassets file. This will open the asset editor.

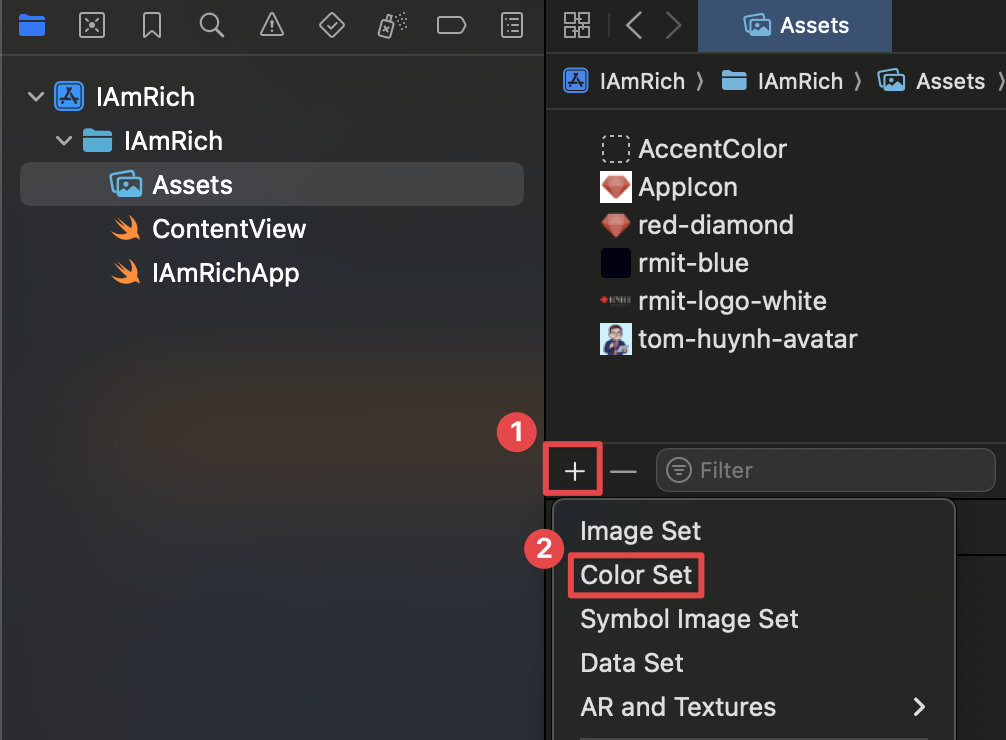

Step 2: Create a New Color Set

Description: Add a new Color Set to your assets. This will allow you to define a custom color that can be reused throughout your app.

Instruction: At the bottom of the asset editor, click the "+" button and select "Color Set" from the dropdown menu.

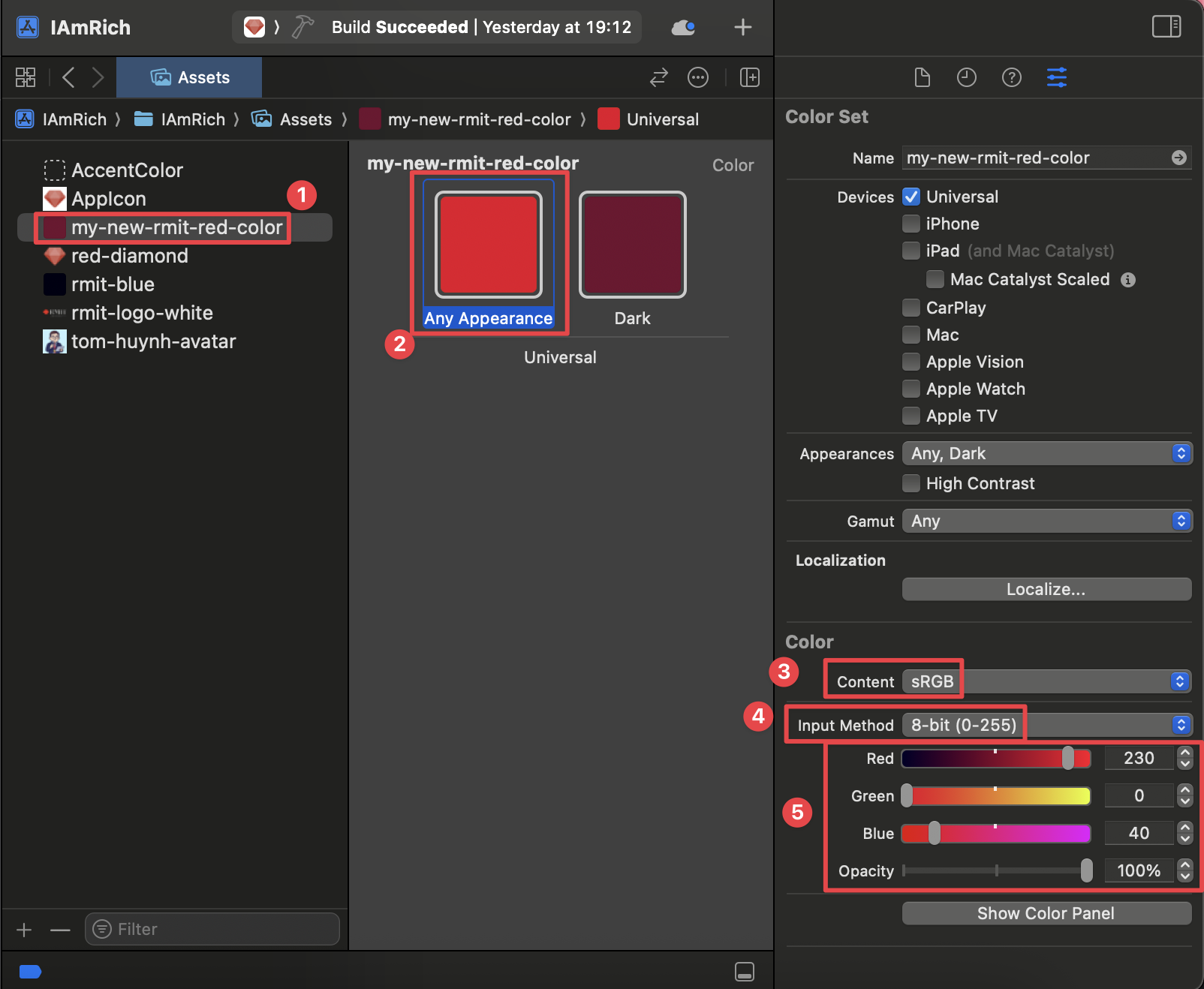

Step 3: Name and Configure the Color

Description: Give your new color a descriptive name and choose the color value. You can set different colors for light and dark mode.

Instruction: Select the new color set. In the Inspector on the right, give it a name (e.g., "BrandPrimary"). Click on the color swatch for "Any Appearance" to open the color picker and choose your desired color.

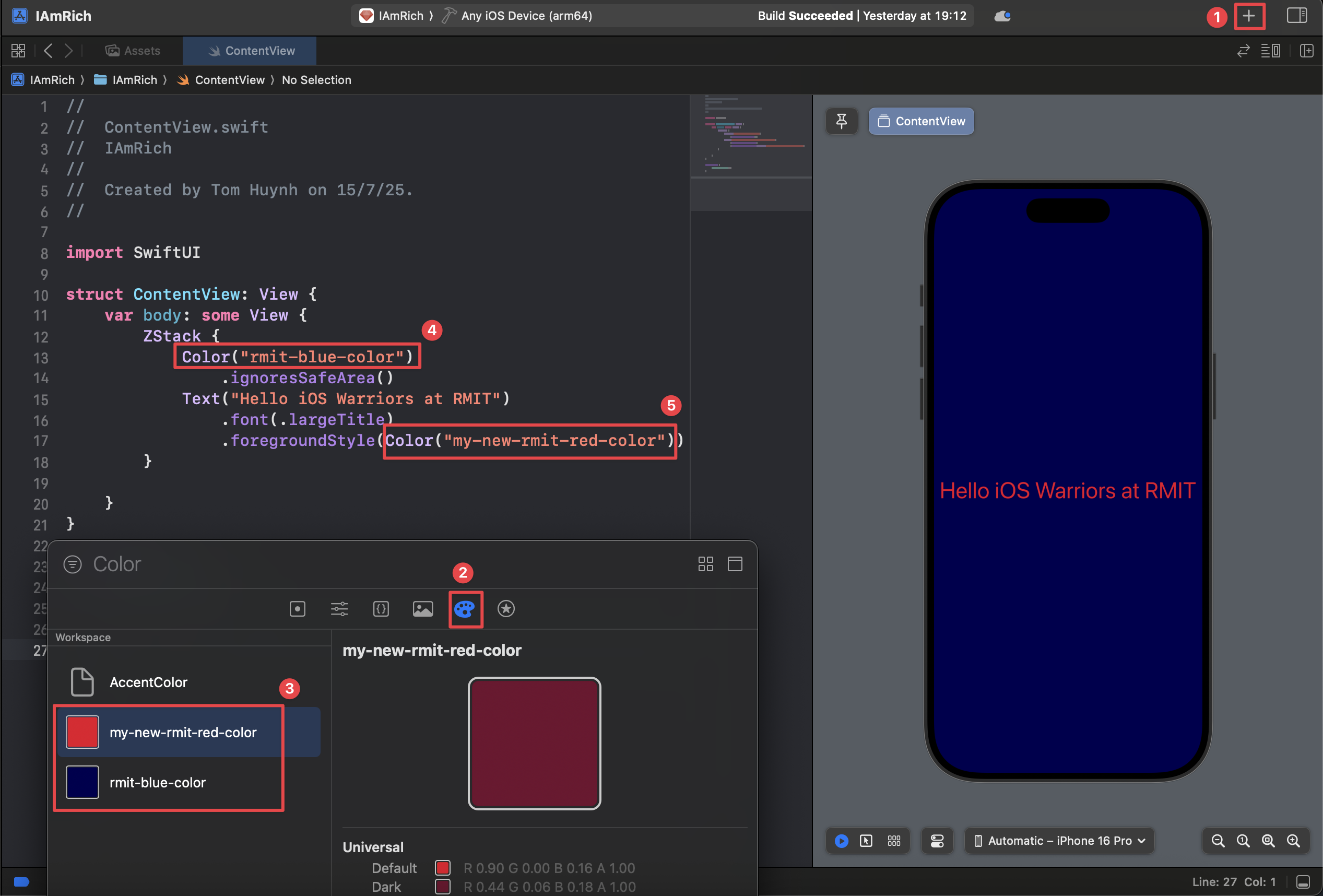

Step 4: Use the Color Set in SwiftUI

Description: Once defined, you can easily use your custom color in your SwiftUI views by referencing its name.

Instruction: In your SwiftUI code, use Color("YourColorName") to apply the custom color. For example, Color("BrandPrimary").

struct ContentView: View {
    var body: some View {
        ZStack {
            Color("BrandPrimary")
                .ignoresSafeArea()
            Text("Hello, Color Sets!")
                .foregroundColor(.white)
        }
    }
}

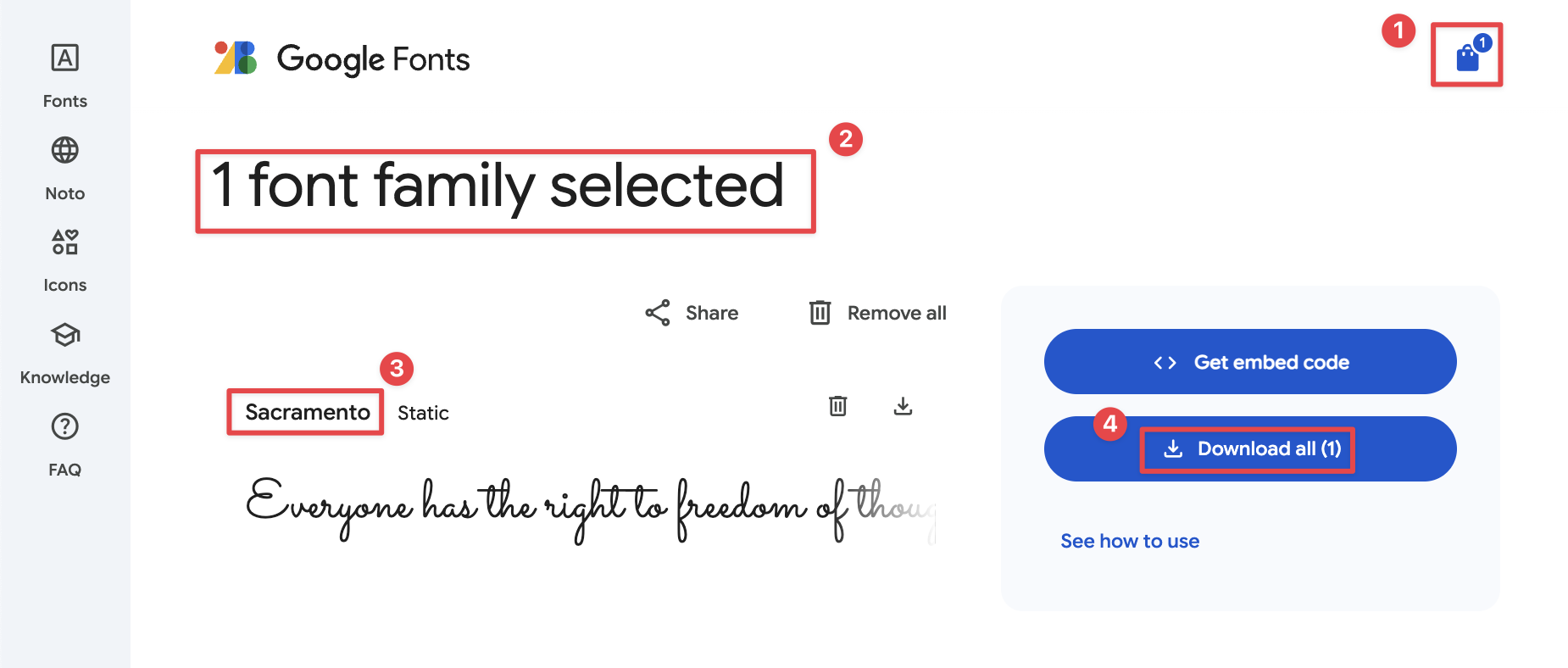

Step 1: Choose and Download Your Font

Description: Find and download a custom font to use in your app. Google Fonts is a great resource for free, high-quality fonts.

Instruction: Go to fonts.google.com, choose a font you like, and download the font family. Unzip the downloaded file to find the .ttf or .otf font files.

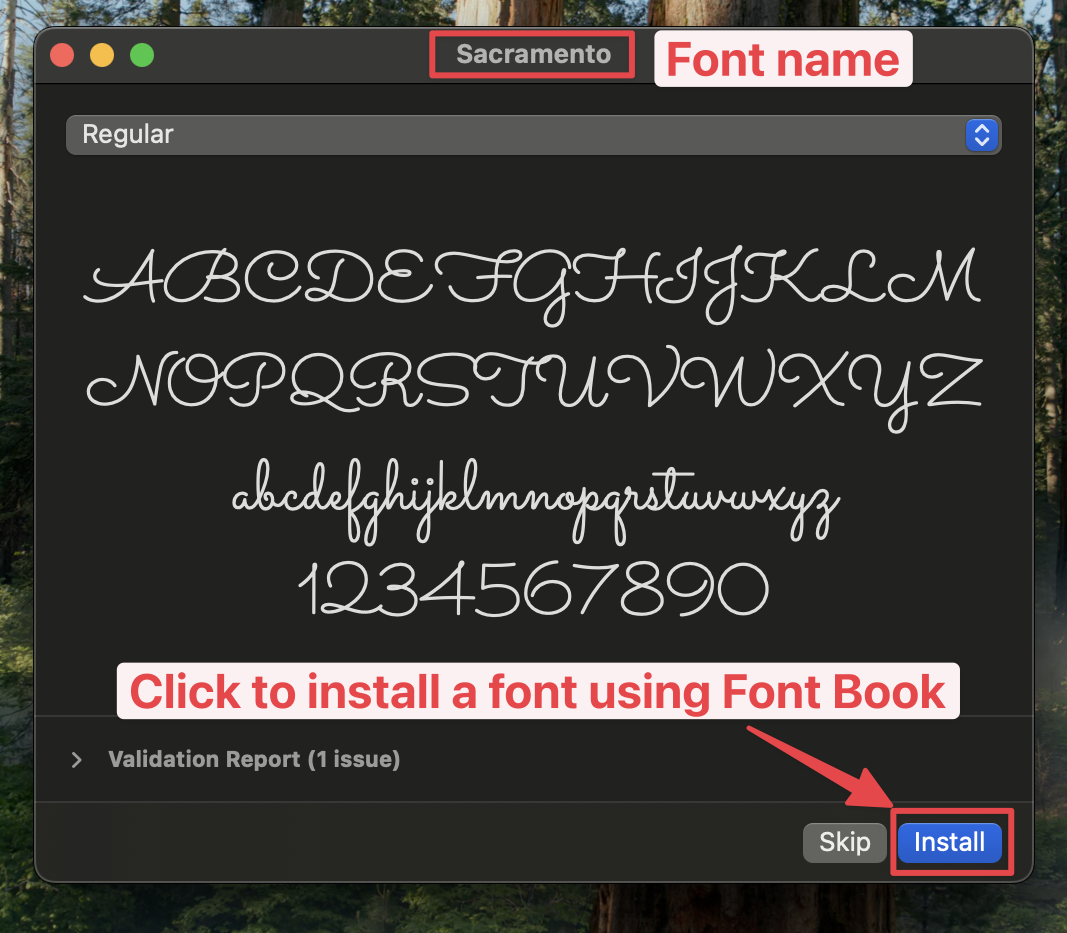

Step 2: Install the fonts with Font Book

Description: Before using a custom font in your app, you need to install it on your Mac using Font Book. This makes the font available to the system and allows you to verify its details.

Instruction: Locate the .ttf or .otf font file you downloaded and double-click it. Font Book will open and display a preview of the font. Click the "Install Font" button to add it to your system's font library.

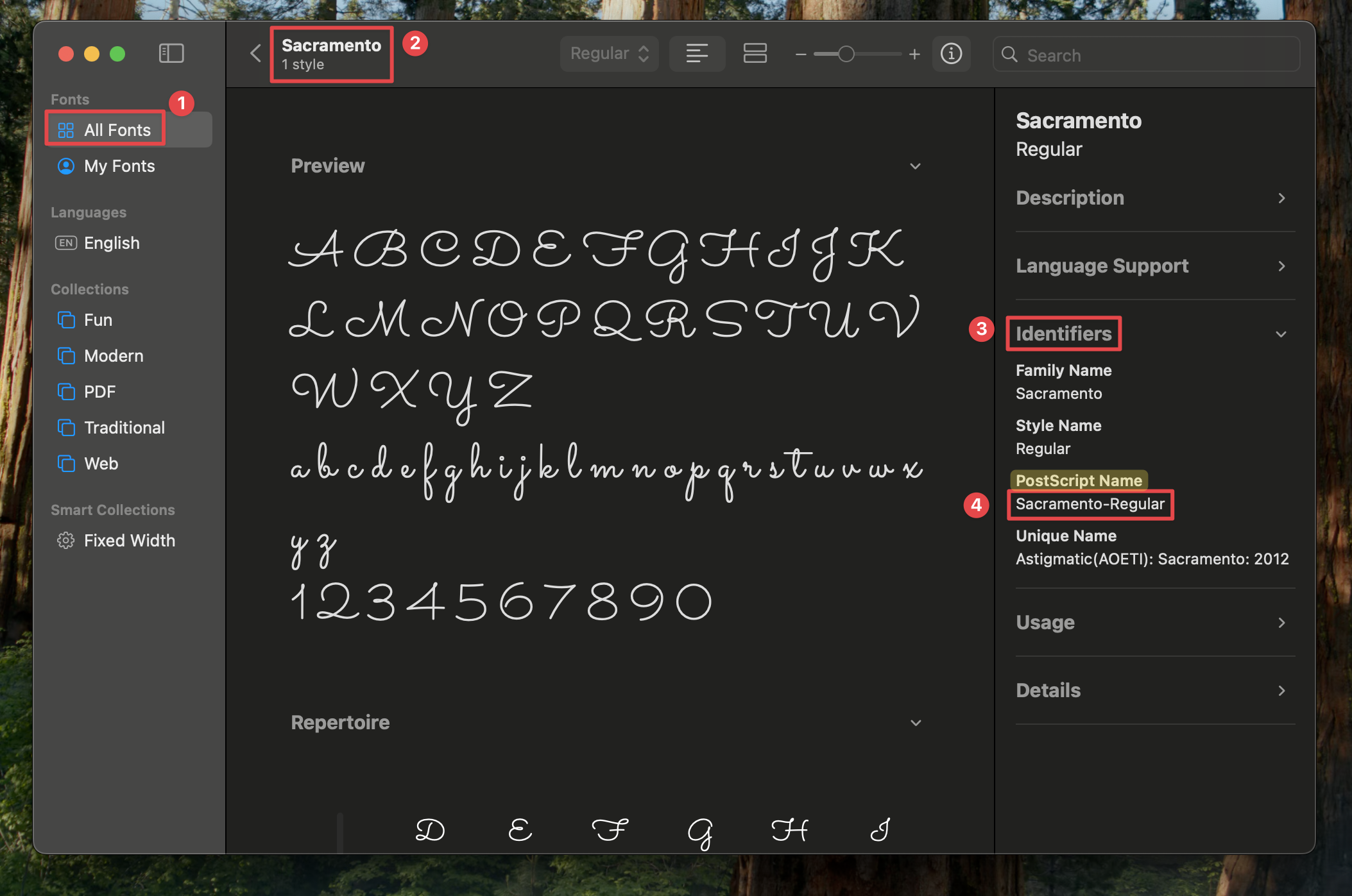

Step 3: Check the PostScript Name in Font Book

Description: To use a custom font in SwiftUI, you need its PostScript name, which may be different from the file name. You can find this name in Font Book.

Instruction: In Font Book, select the font you just installed. Click the "Info" button (i) in the toolbar. Look for the "PostScript name" field. This is the exact name you will use in your code.

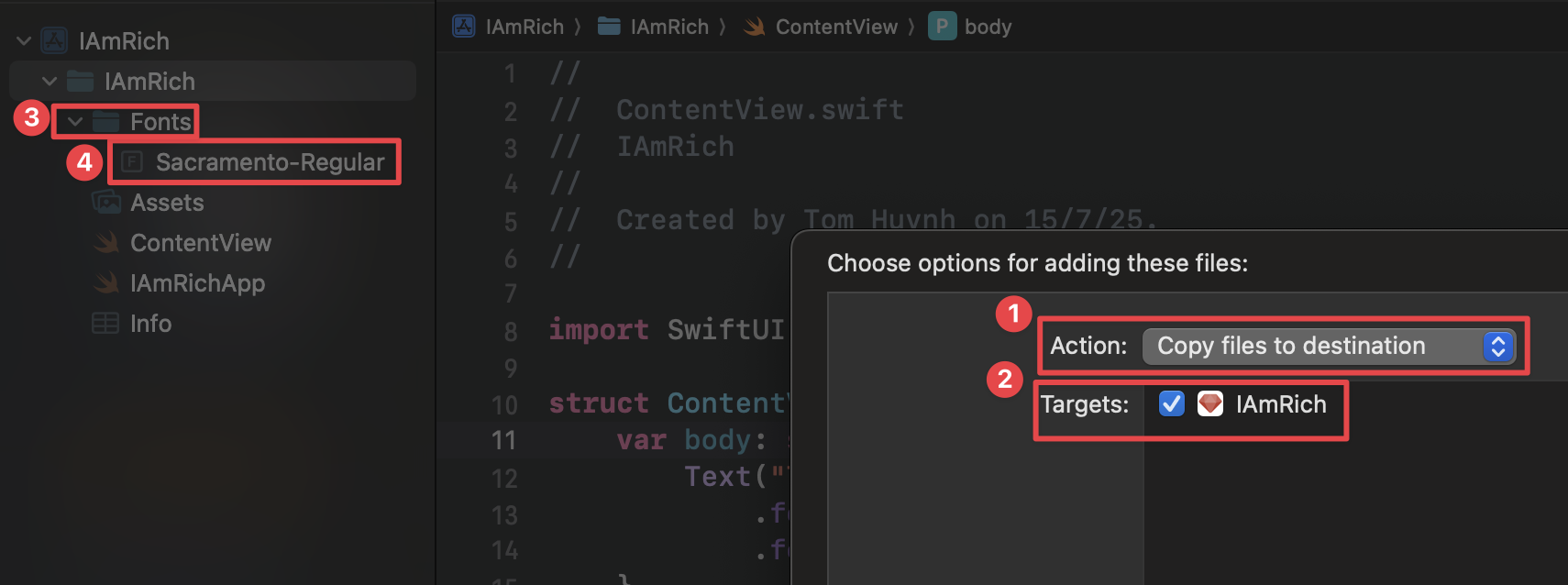

Step 4: Add Font Files to Your Xcode Project

Description: Import the font files into your Xcode project and ensure they are included in the target.

Instruction: Drag the .ttf or .otf font files into the Project Navigator in Xcode. In the dialog that appears, make sure to check "Copy items if needed" and select your app's target in the "Add to targets" section.

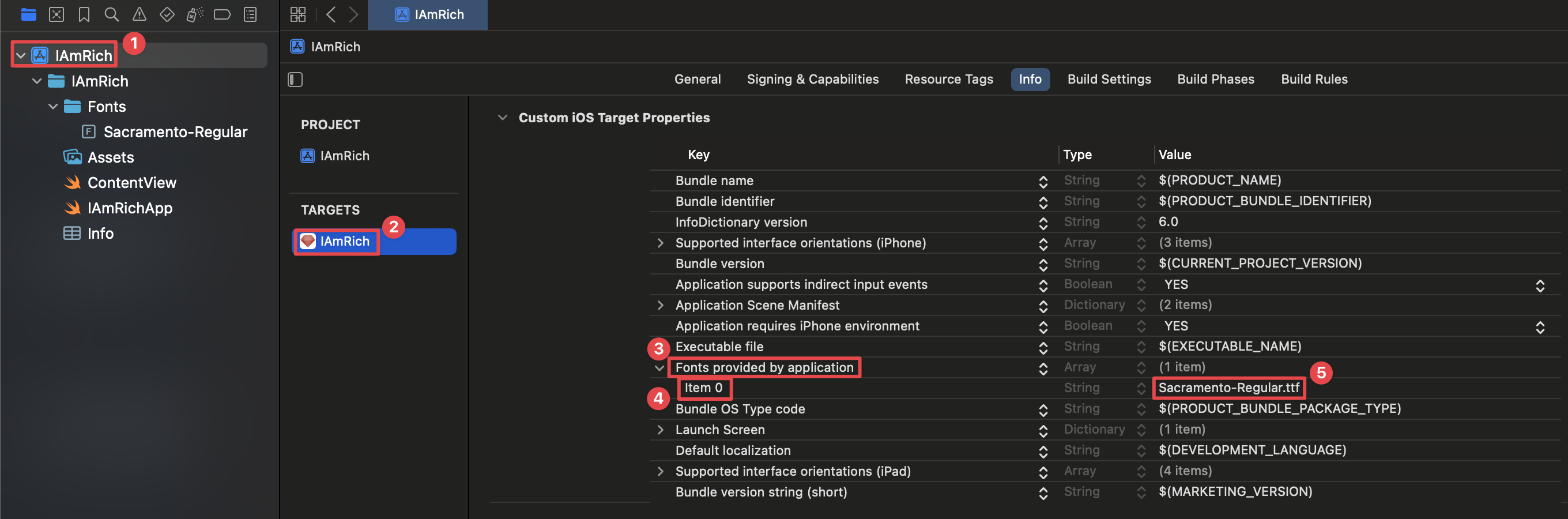

Step 5: Register the Font in Info.plist

Description: Inform your app about the custom fonts by adding an entry to the Info.plist file.

Instruction: In the Project Navigator, select your project file, go to the Info tab. Click the "+" button to add a new key, and select "Fonts provided by application". Expand this new array and add a new item for each font file you added (e.g., "YourFont-Regular.ttf").

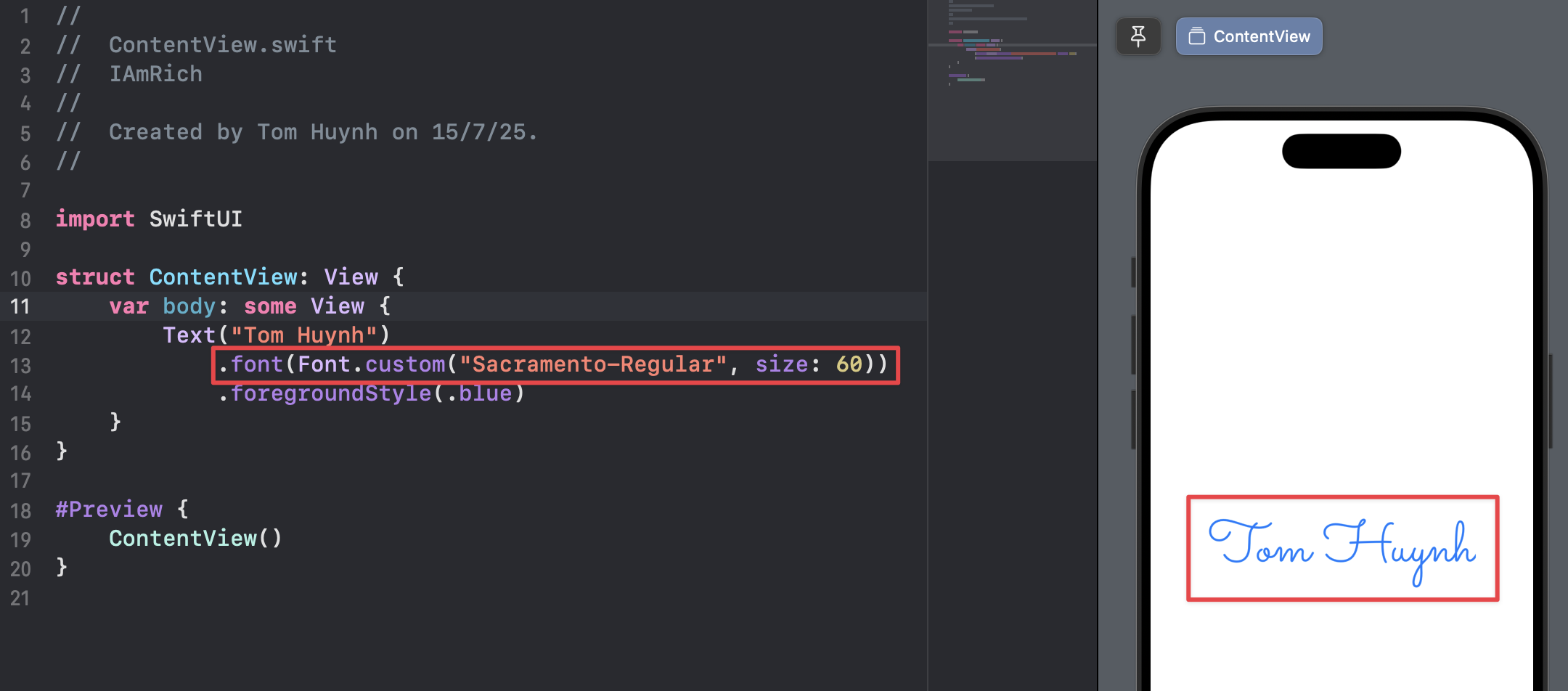

Step 6: Use the Font in SwiftUI

Description: Apply your custom font to Text views in your SwiftUI code using the .font() modifier.

Instruction: Use the .font(.custom("FontName", size: 24)) modifier on a Text view. The "FontName" should be the PostScript name of the font, which you can find by opening the font file in Font Book on your Mac.

struct ContentView: View {
    var body: some View {
        Text("This is my custom font!")
            .font(.custom("YourFont-Regular", size: 24))
    }
}

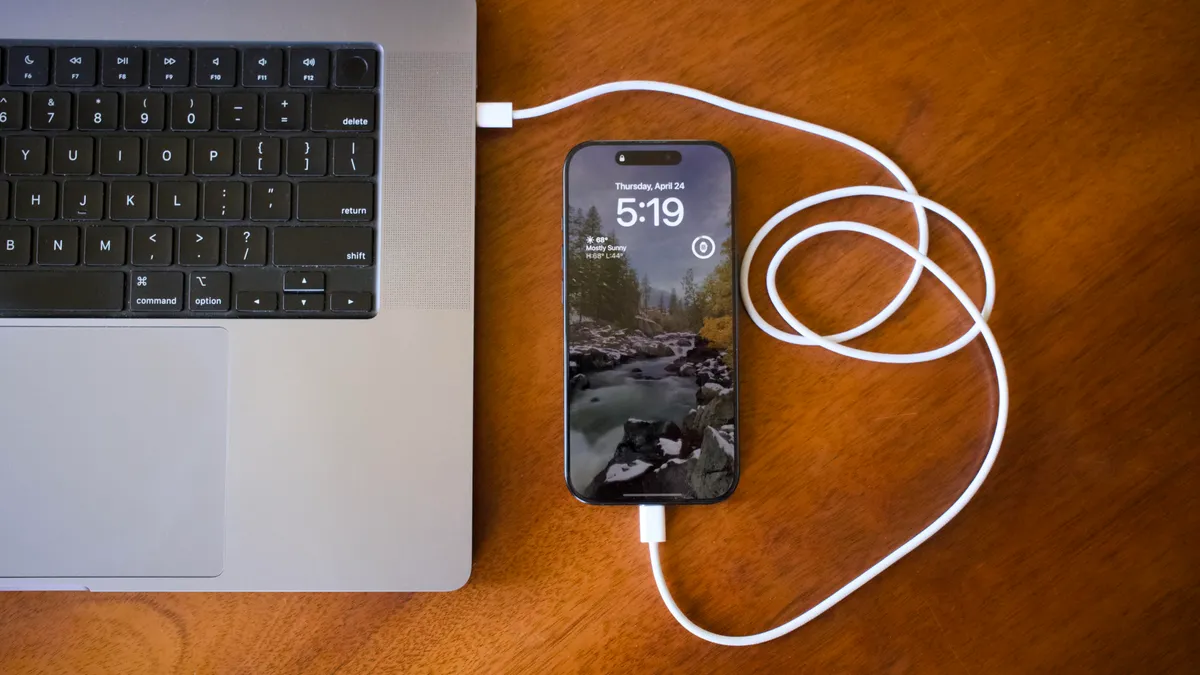

Step 1: Connect Your iPhone/iPad to Your Mac

Description: Connect your physical iOS device to your Mac using a USB cable to begin the deployment process.

Instruction: Use a Lightning or USB-C cable to connect your iPhone or iPad directly to one of your Mac's USB ports.

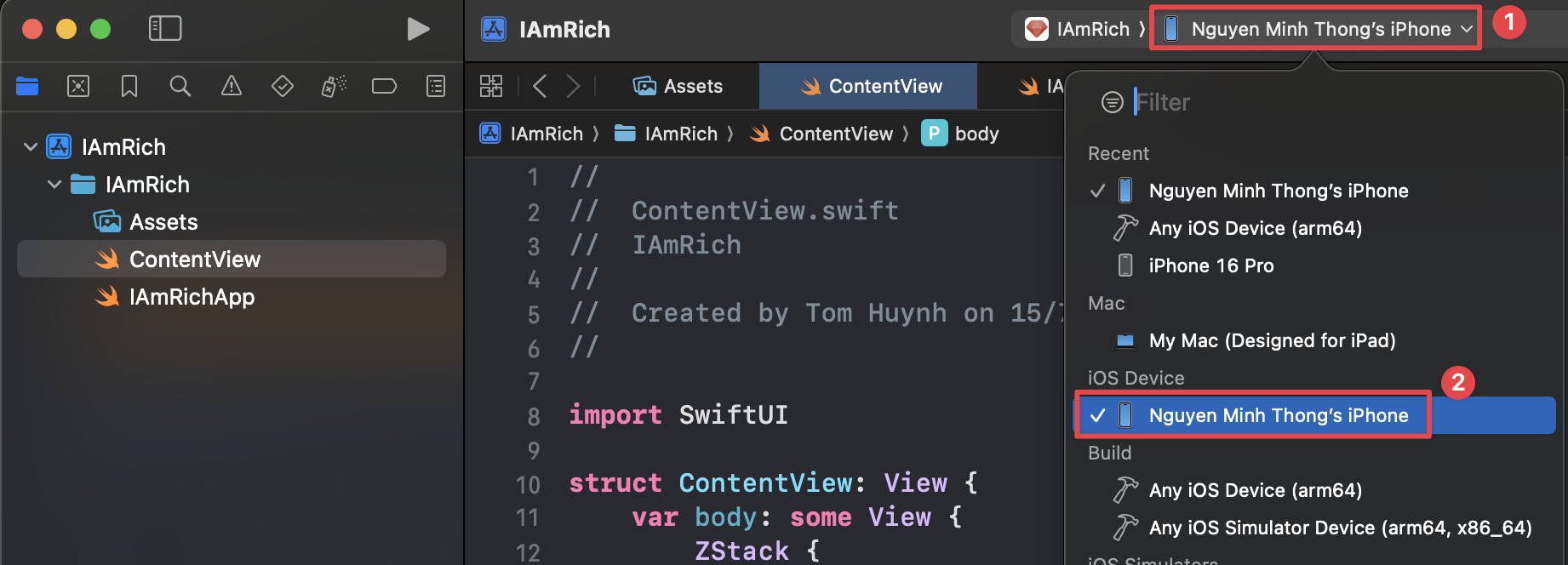

Step 2: Select Your Device as the Run Destination

Description: In Xcode, choose your connected device from the list of available run destinations.

Instruction: In the Xcode toolbar, click on the device/simulator dropdown (it might currently show an iOS Simulator). Your connected iPhone or iPad should appear at the top of the list. Select it.

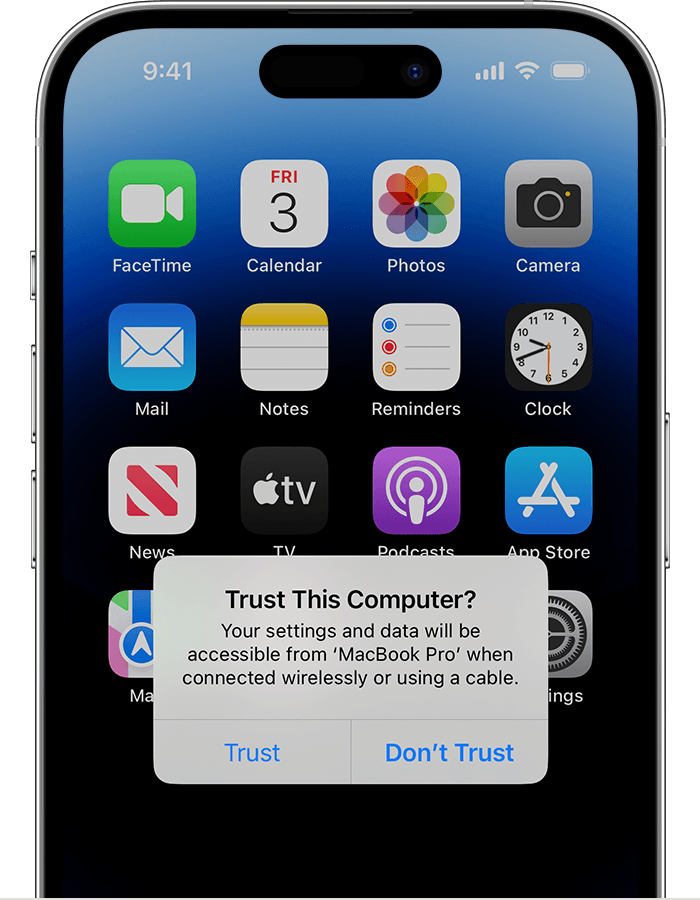

Step 3: Trust the Computer on Your Device

Description: Establish a trusted relationship between your iOS device and your Mac to allow Xcode to install and debug apps.

Instruction: Unlock your iPhone or iPad. A prompt will appear asking whether to "Trust This Computer?". Tap "Trust" and enter your device passcode if prompted.

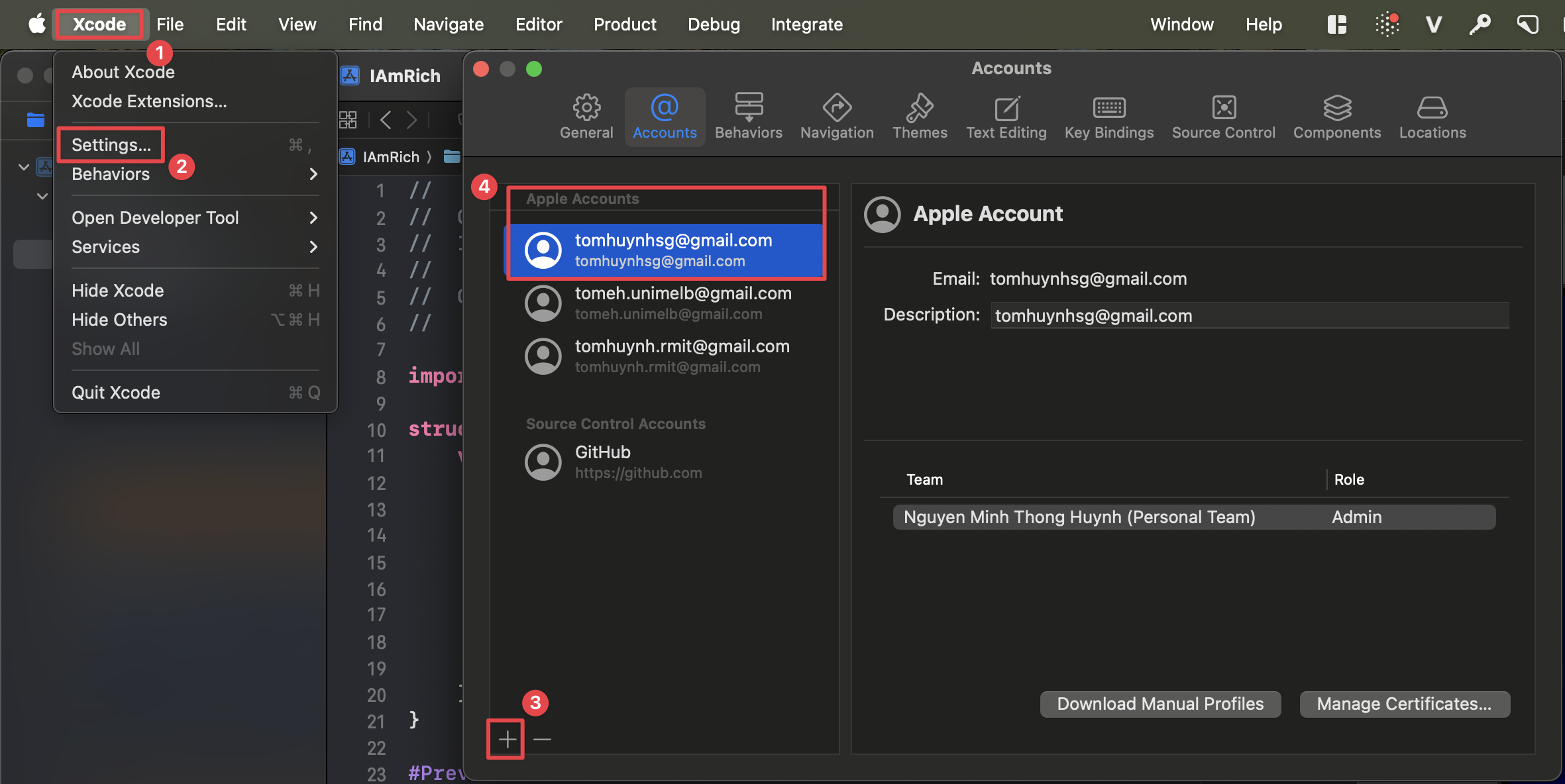

Step 4: Add Your Apple Developer Account to Xcode

Description: Sign in with your Apple ID in Xcode to manage development teams and provisioning profiles. A free Apple ID is sufficient for testing on your own devices.

Instruction: In Xcode, go to Xcode > Settings... (or Preferences...). Click on the Accounts tab. Click the + button in the bottom-left corner, select "Apple ID", and sign in with your credentials.

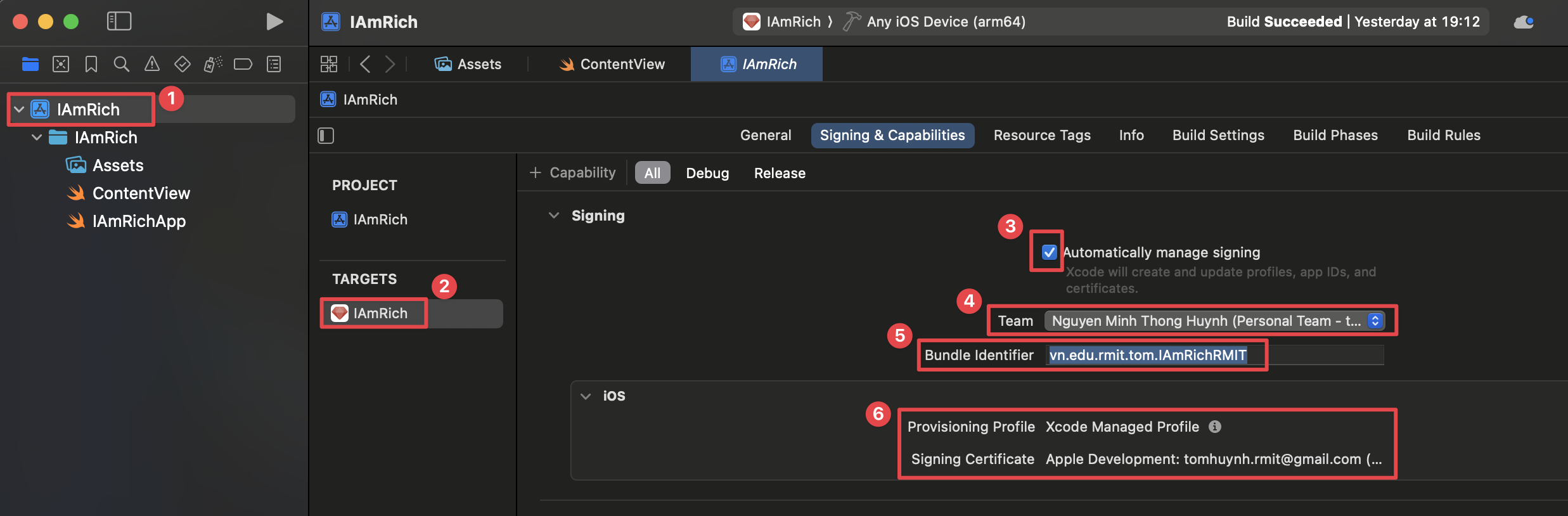

Step 5: Assign a Team to Your Project

Description: Associate your project with your developer account to allow Xcode to automatically manage the signing process.

Instruction: In the Project Navigator, select the top-level project file. Go to the Signing & Capabilities tab. From the "Team" dropdown, select the personal team associated with your Apple ID. Xcode may show a status message like "Xcode will create and update a provisioning profile."

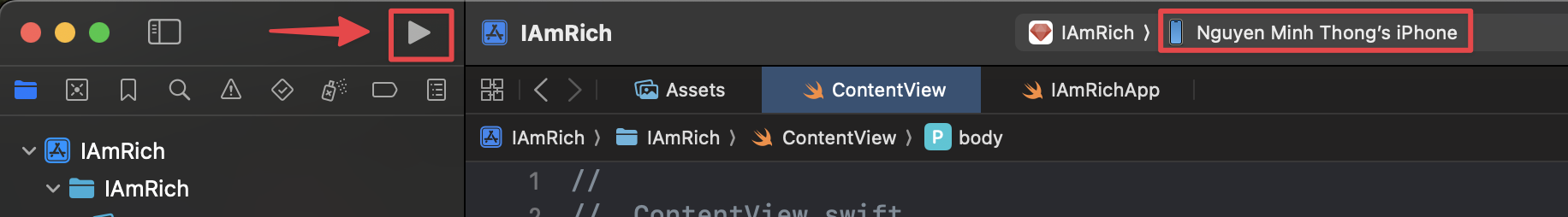

Step 6: Build and Run the App

Description: Deploy and launch your app on your connected physical device.

Instruction: Click the Play button (▶️) or press Command + R. Xcode will build the app and install it on your device.

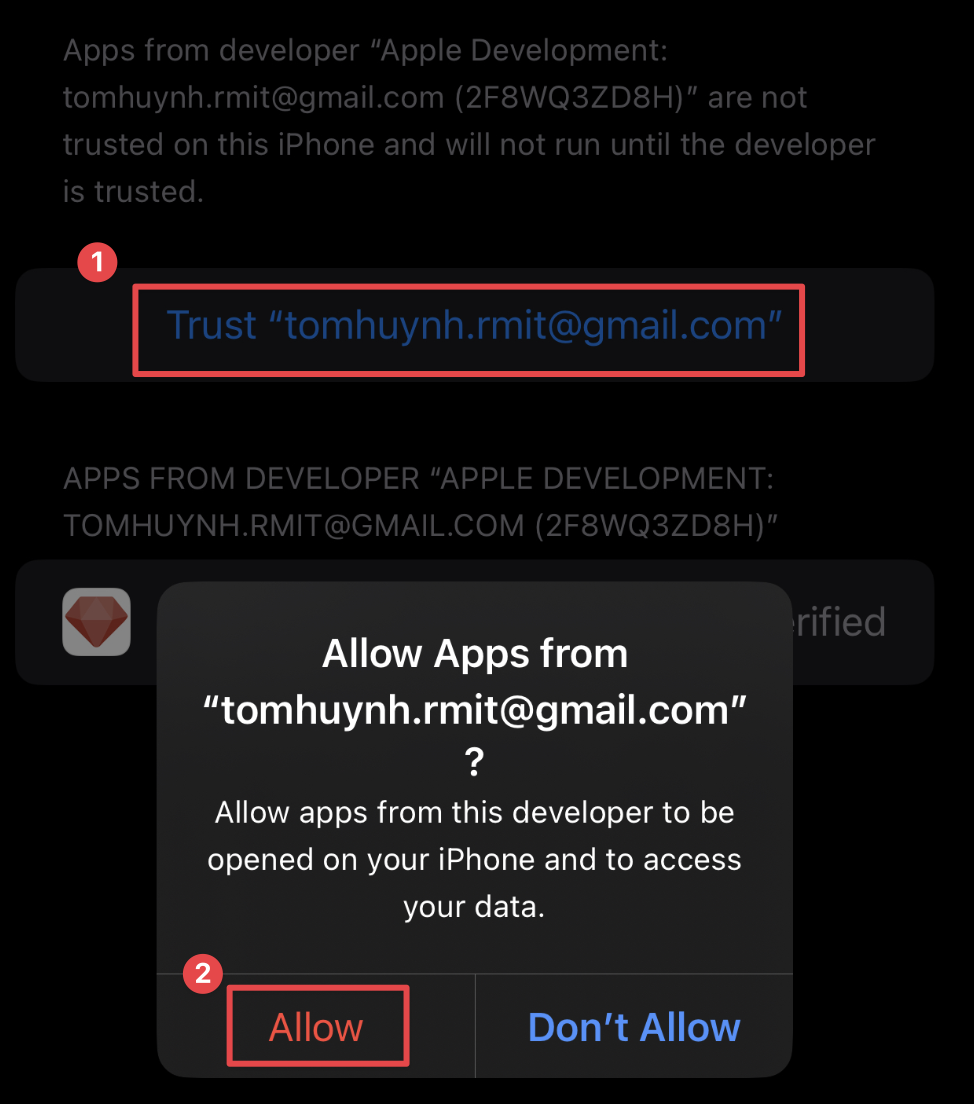

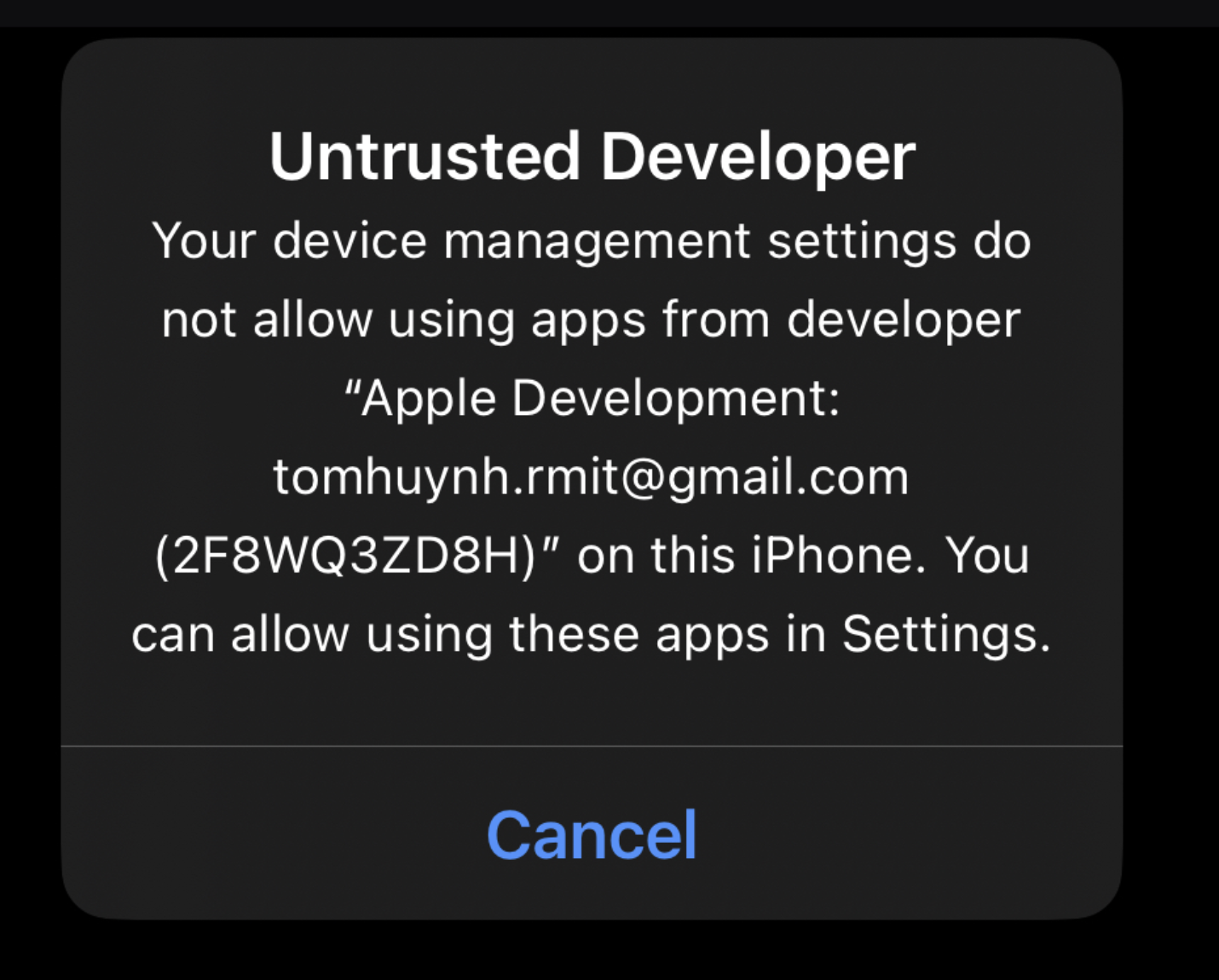

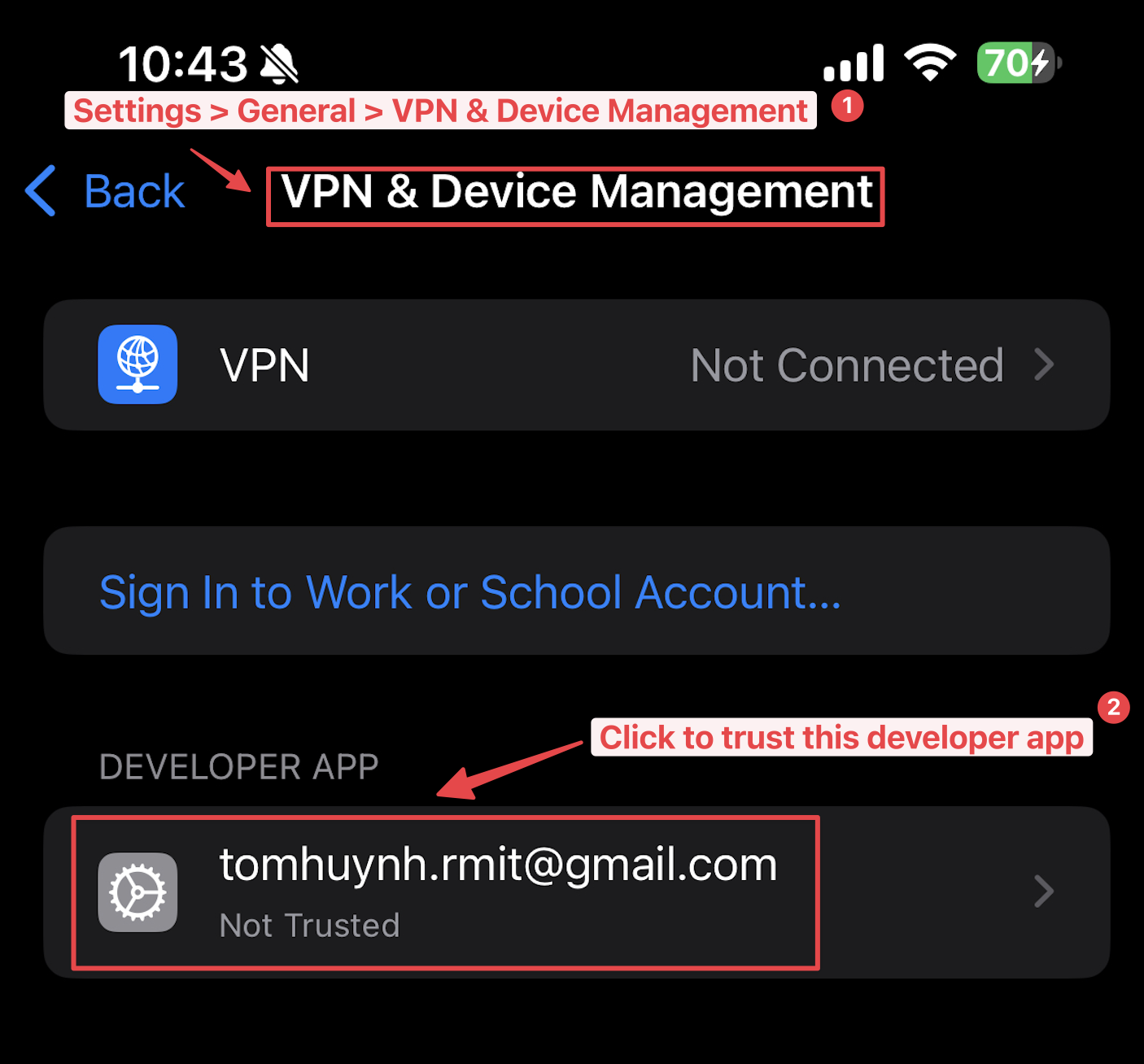

Step 7: Trust the Developer on Your Device

Description: The first time you run an app from a new developer account, you must manually trust the developer in your device's settings.

Instruction: On your iPhone/iPad, go to Settings > General > VPN & Device Management. Under the "Developer App" section, tap on your developer app certificate and then tap "Trust". After this, the app will be able to launch.

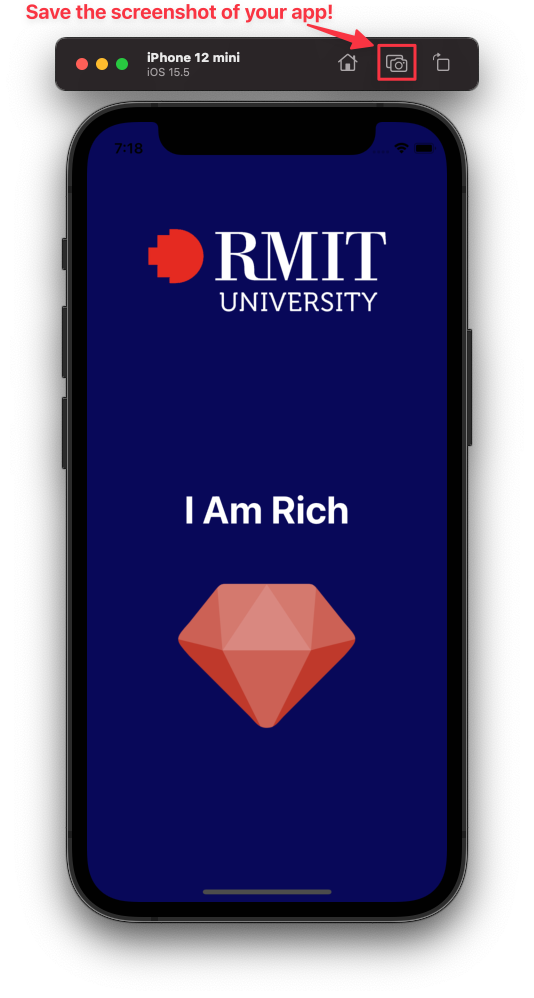

Step 1: Take a Screenshot in the Simulator

Description: Open your app in the iPhone Simulator and use the built-in screenshot functionality. Note that the simulator screenshot will not include the iPhone device frame, which is expected behavior.

Instruction: With your app running in the simulator, navigate to File > New Screen Shot in the menu bar, or use the keyboard shortcut Cmd + S. The screenshot will be saved to your desktop.

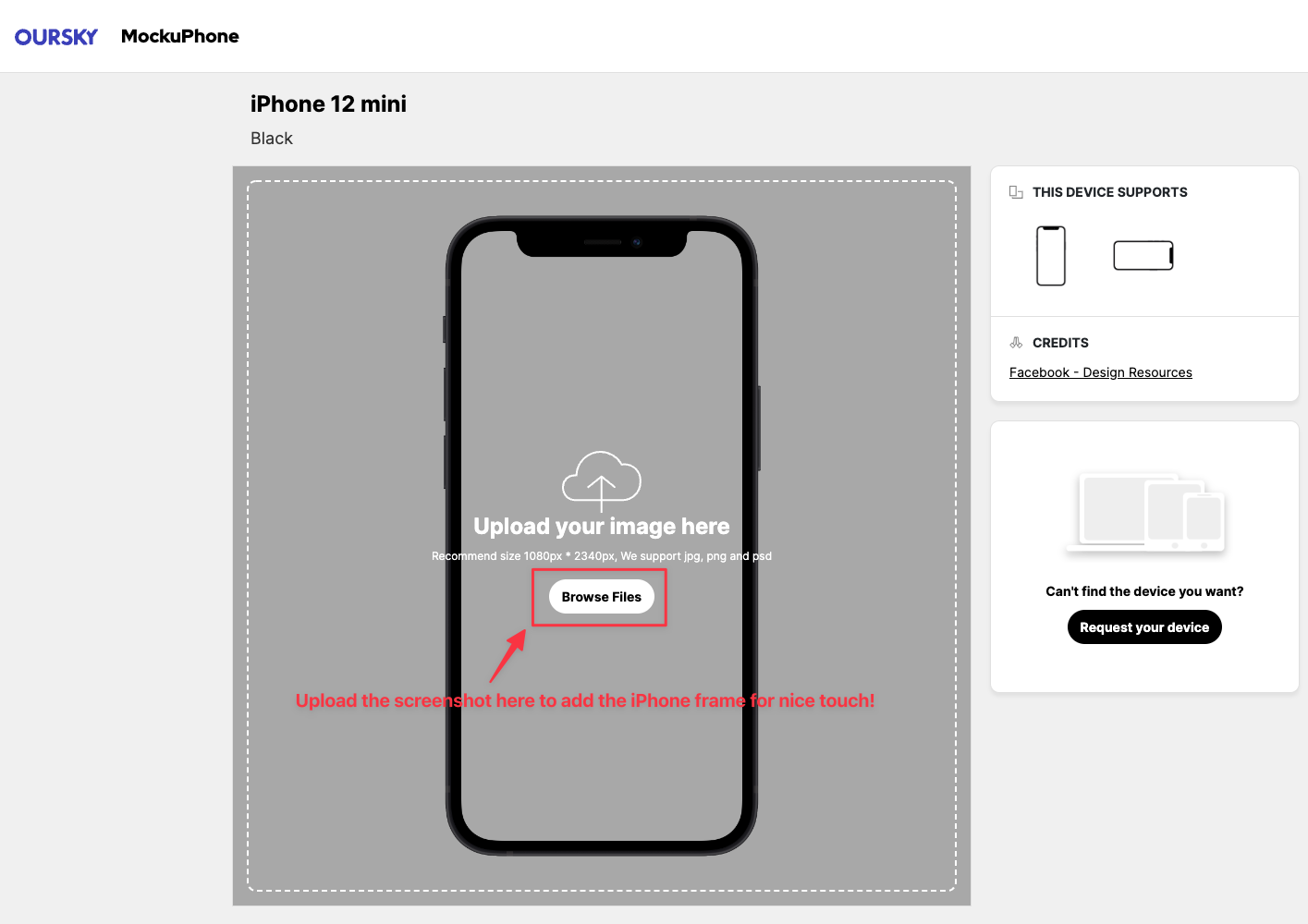

Step 2: Add an iPhone Frame with Mockuphone

Description: To create a more professional-looking image, you can add a device frame to your screenshot using a free online tool like Mockuphone.

Instruction: Go to mockuphone.com. Select the iPhone model that matches the one you used in the Xcode simulator. For example, if you used the iPhone 12 mini, select that model on the website.

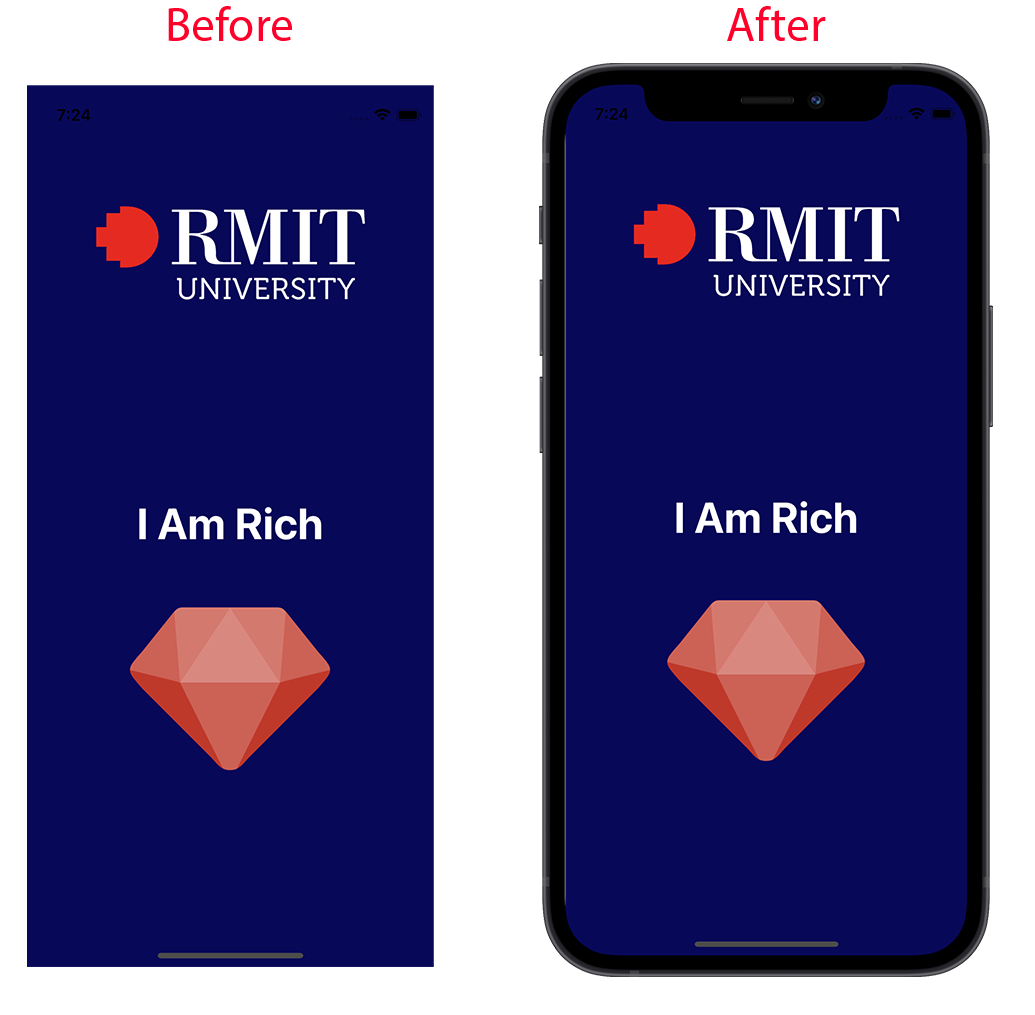

Step 3: Upload and Download Your Framed Screenshot

Description: Upload your screenshot to Mockuphone to have it automatically placed within the selected iPhone frame.

Instruction: Follow the website's instructions to upload the screenshot you took in Step 1. Once processed, you can download the final image, which will now feature your app within a realistic iPhone frame.

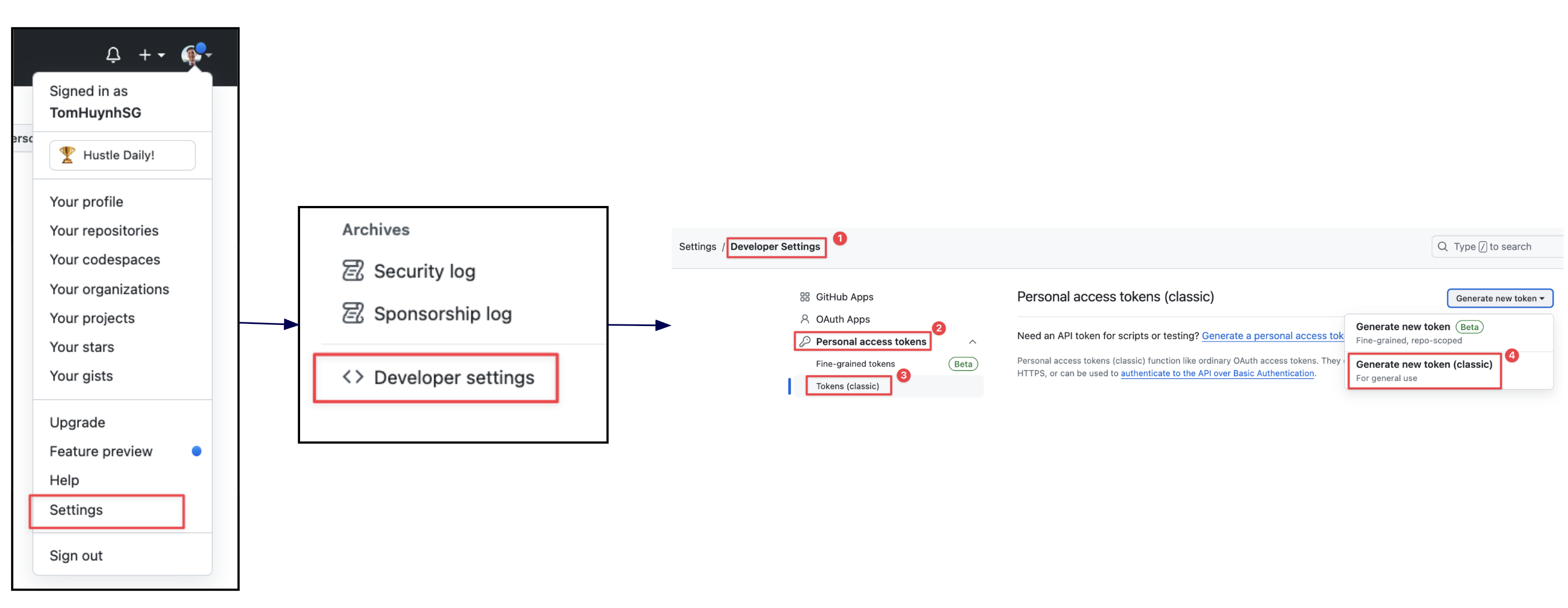

Step 1: Navigate to Personal Access Tokens

Description: To connect Xcode with your GitHub account, you first need to navigate to the Personal Access Token section in your GitHub settings.

Instruction:

• Click your profile icon in the top-right corner and select Settings.
• In the left sidebar, scroll down and click on Developer settings.
• Select Personal access tokens, then choose Tokens (classic).
• Click the "Generate new token" dropdown and select Generate new token (classic).

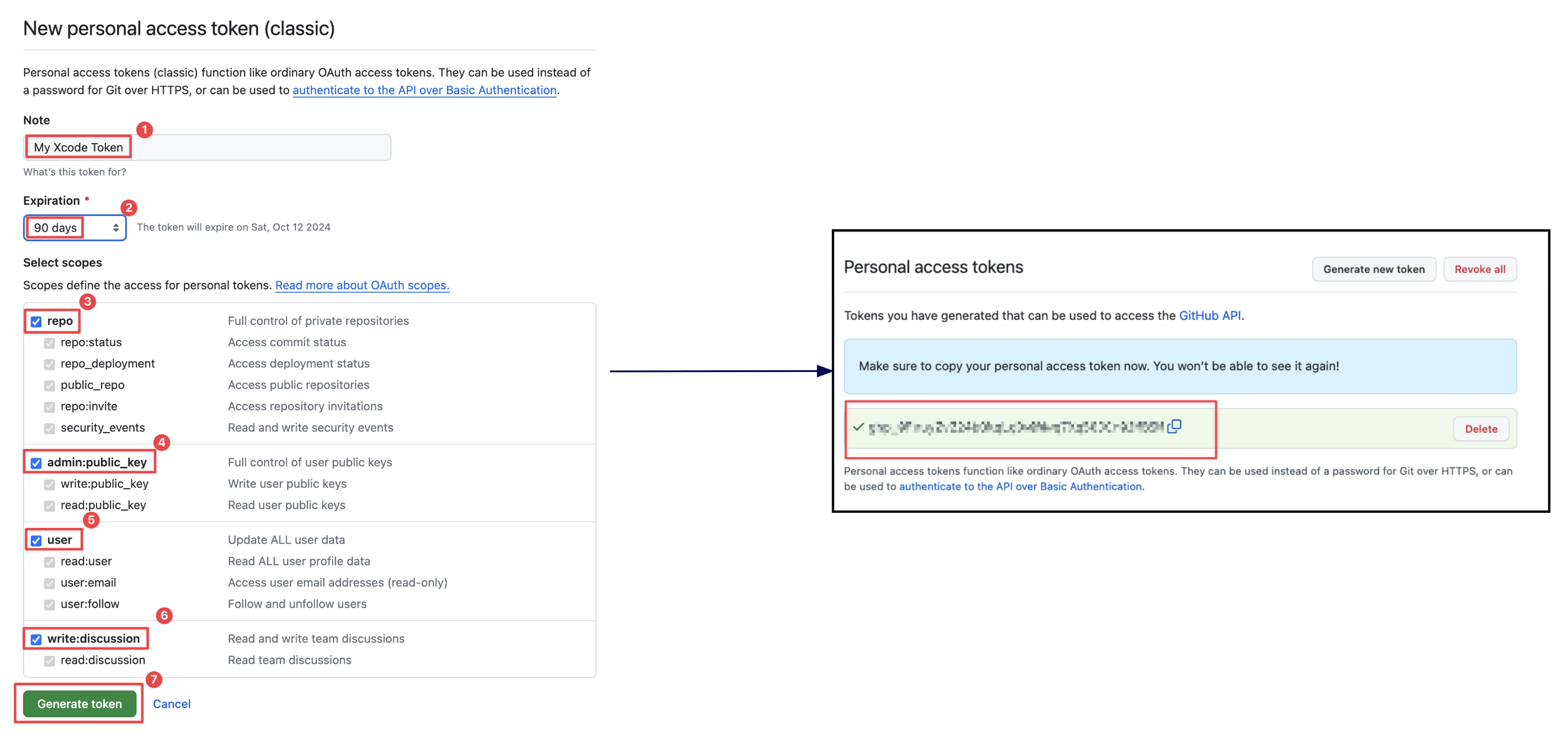

Step 2: Generate a New Personal Access Token

Description: Create a new token with the specific permissions (scopes) that Xcode needs to interact with your GitHub account and repositories.

Instruction:

• Click "Generate new token."
• Give your token a descriptive name (e.g., "My Xcode Token") and set an expiration date (e.g., 90 days).
• In the "Select scopes" section, check the boxes for the following permissions: repo, admin:public_key, user, and write:discussion.
• Click "Generate token" at the bottom of the page.
• Important: Copy the generated token to a safe place immediately. You will not be able to see it again.

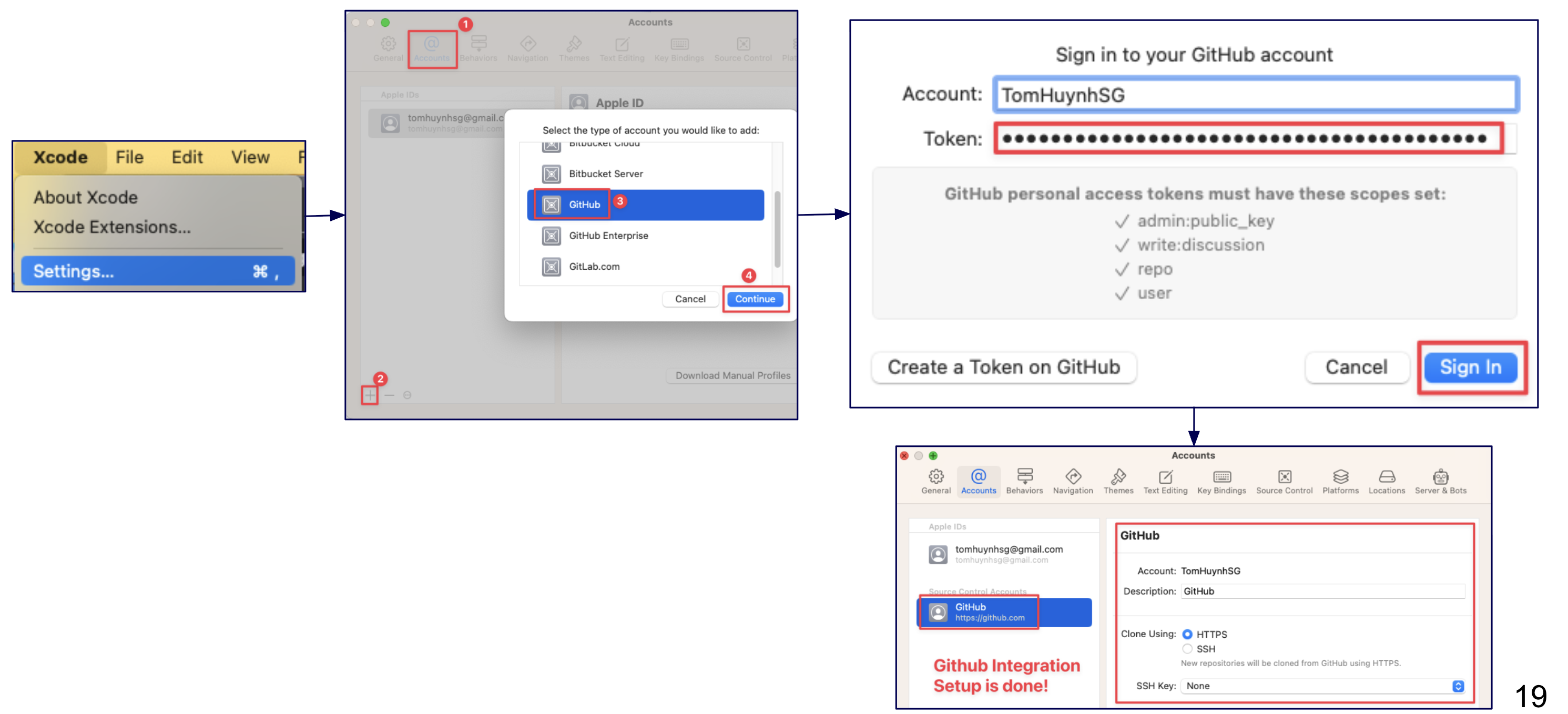

Step 3: Add Personal Access Token to Xcode

Description: Add your GitHub account to Xcode using the personal access token you just created.

Instruction: In Xcode, go to Xcode > Settings... > Accounts. Click the "+" button, select "GitHub," and sign in using your GitHub username and the personal access token as the password.

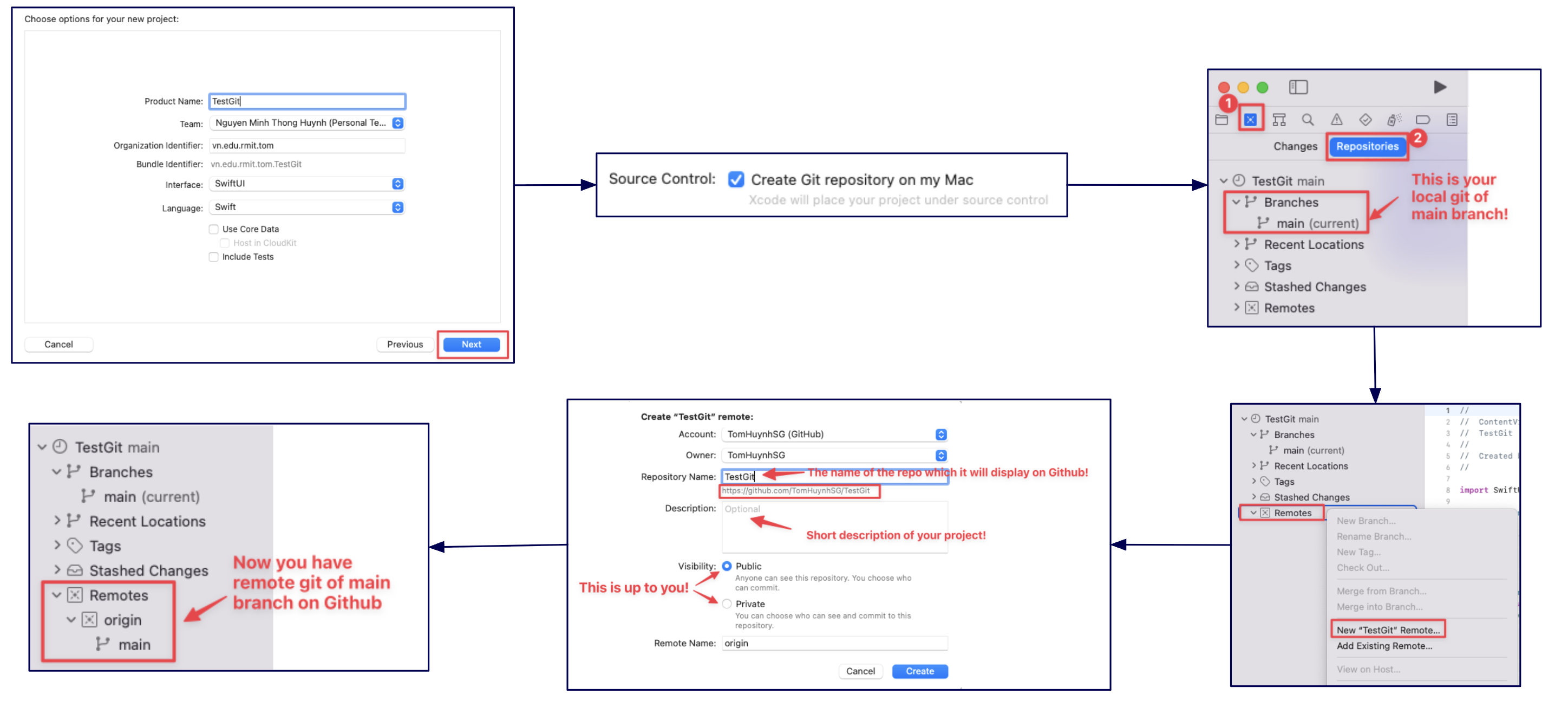

Step 4: Create a New Project to Test GitHub Integration

Description: When creating a new project, you can either create a new GitHub repository or clone an existing one.

Instruction:

• Option A: Create a new GitHub repo from a local project: When creating your project, ensure "Create Git repository on my Mac" is checked. After the project opens, go to the Source Control navigator (the second icon in the left sidebar). Right-click the "Remotes" folder and select "New [Your Project Name] Remote...". In the pop-up window, you can set the repository name, description, and visibility, then click "Create" to publish your local project to GitHub.

• Option B: Link a local project to an existing GitHub repo: If you have an existing local project with Git, you can link it to a remote repository. In the Source Control navigator, right-click the "Remotes" folder, select "Add Existing Remote...", and paste your repository's HTTPS URL.

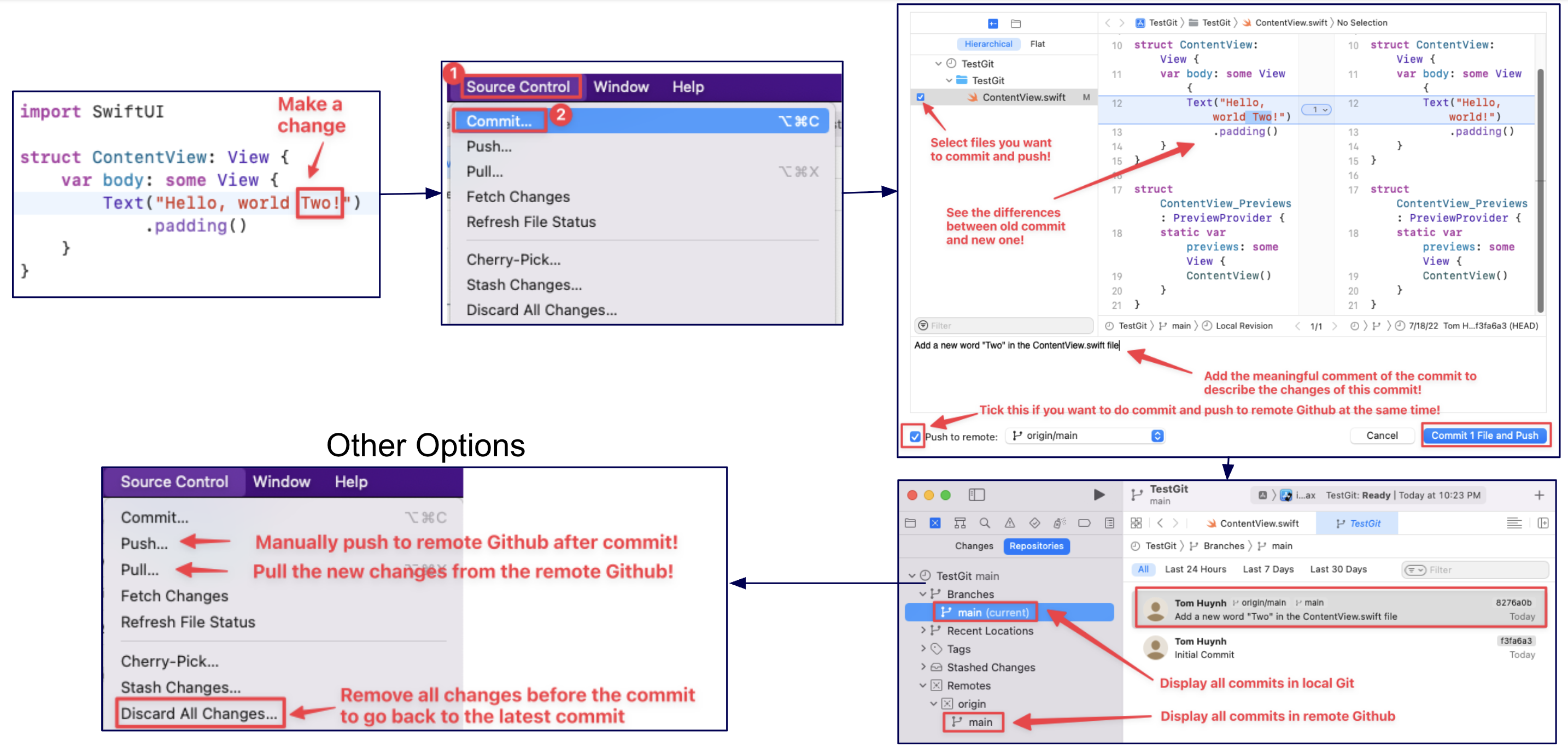

Step 5: Commit and Push Changes from Xcode

Description: After making changes to your code, you can commit them to your local repository and push them to GitHub to keep your project synchronized.

Instruction:

• After modifying a file, go to Source Control > Commit... in the menu bar.
• In the commit window, you can review the changes, select the files you want to include, and write a meaningful commit message describing your updates.
• To commit and push simultaneously, check the "Push to remote" box and click "Commit and Push."
• Alternatively, you can commit locally first and then push separately by going to Source Control > Push....
